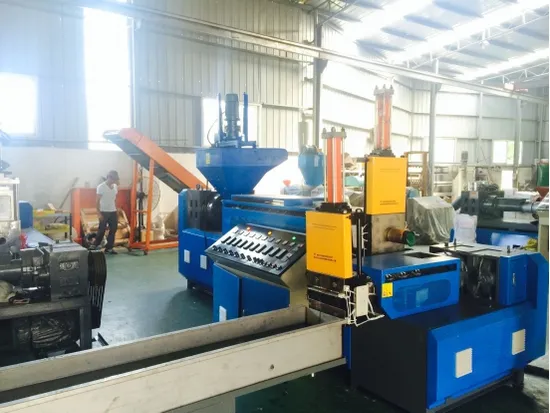

Double Screw Waste Plastic Recycling Machine

Product Description

Model	SJ-110/100mm
capacity	180-220KG/H
Power supply	3Phase/380V/50HZ (can be your request)
Hopper	Size :600mm*600mm
Gear box	200-1# Gear Box made by Guomao brand.
	173# Gear Box made by Guomao brand.
Screw	diameter:110mm length :2200mm material :38CR with vent
	diameter:100mm length :1000mm material :38CR with vent
Driving system	Motor :22KW speed r/m:1470 made in Nanjing Frequency transformer is star triangle start.
	Motor : 11KW speed r/m:1470 made in Nanjing Inverter :11KW from Shanghai ANDA
Filter system	Double Screen filter, Hydraulic Change Screen,Filter Size :200mm*200mm Hydraulic motor :2.2kw ,heating power :15kw
	Screen filter, Hydraulic Change Screen,Filter Size :180mm*180mm Hydraulic motor :2.2kw ,heating power :10kw
Control box	5 zones/2zonesElectrical accessories adopt to the brand of Zhengtai.
Cooling system	Size :2500*400*350mm material :stainless(with fan)
Cutter system	18 knives cuter machine(speed can be control) cut size :3-4MM
Totally power	50KW
Factory Price

1, guarantee period: gear box, motor, inverter , AC contactor (warranty for one year).
2, if there is a problem please check : whether the voltage instability, take the wrong wire.
3, solution: (1) take pictures (2) is not allowed to disassemble
Within the warranty period, if the fault is not artificial, Tongxing machinery will provide repair, freight borne by the buyer. If you do not have the correct operation, you will bear the cost of maintenance and freight.

---
