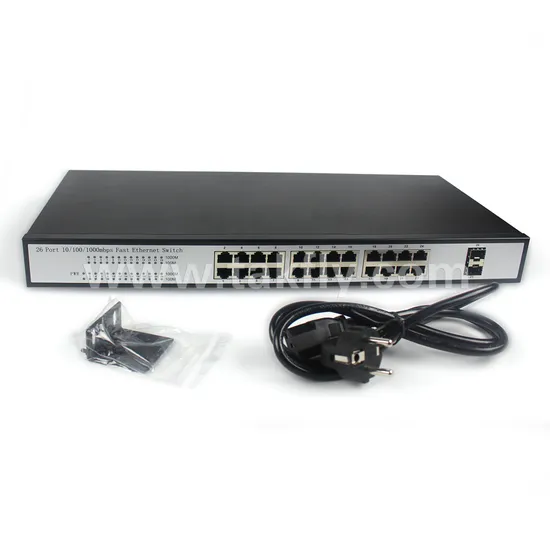

Fiber Optic Gigabit 26 Ports Fiber Switch 10/100/1000Mbps Fiber Optic Ethernet Switch Description This type switch is designed for emerging Ethernet-based FTTX applications. The switch is feature-rich and widely used. It is especially suitable for access networks and small-to-medium-sized private networks. It has a built-in 60W industrial-grade communication power supply. It has dual power supply redundancy design and can be applied to applications requiring high reliability. The appearance is 19 inches and 1U.
This type series switches mainly include FTTx, fiber-optic LAN, industrial Ethernet, Ethernet-based highreliability industrial distributed control system (DCS) and optical fiber digital video surveillance systems. Support universal hot-swappable SFP optical modules. It can be connected to fiber switches, optical transceivers, and various types of terminators that contain fiber interfaces. It supports super-high-definition video streaming capabilities, streamline network structures, and can provide up to 56 Gbps of switching capacity. It can meet the different requirements of large-scale network convergence or small and medium-sized network cores. All ports support line- speed forwarding and MDI/MDIX auto-flip function, which enables plug-and-play operation without management. Features * Compatible with single-mode/multi-mode, single-fiber/double-fiber SFP optical modules, or electrical modules (hot swappable) * Supports multiple modes of SFP optical modules or modular plugs * Standard 1U rack design, built-in dual cooling fans, stable operation * Low power consumption (24W), low heat generation, good stability * RJ45 supports automatic MDI / MDI-X function
* Auto-negotiate speed, half/full duplex * Supports flow control to prevent broadcast storms
| Model | Specification |
| DF-1E-4EPI | 10-100M 4 ports Industrial POE Switch |
| DF-1SFE-1EPI | 10-100M single ports Industrial POE Switch |
| DF-1SFE-2EPI | 10-100M 2 ports Industrial POE Switch |
| DF-1SFE-4EPI | 10-100M 4 ports Industrial POE Switch |
| DF-1SFE-8EPI | 10-100M 8 ports Industrial POE Switch |
| DF-2SFE-4EPI | 10-100M 4 ports Industrial POE Switch |
| DF-2SFE-6EPI | 10-100M 6 ports Industrial POE Switch |
| DF-8EPI | 10-100M 8 ports Industrial POE Switch |
| DF-1FG-1GPI | 10-100-1000M Single port Industrial POE Switch |
| DF-1FG-2GPI | 10-100-1000M 2 ports Industrial POE Switch |
| DF-1FG-4GPI | 10-100-1000M 4 ports Industrial POE Switch |
| DF-1FG-8GPI | 10-100-1000M 8 ports Industrial POE Switch |
| DF-1G-4GPI | 10-100-1000M 4 ports Industrial POE Switch |
| DF-2FG-4GPI | 10-100-1000M 4 ports Industrial POE Switch |
| DF-2FG-8GPI | 10-100-1000M 8 ports Industrial POE Switch |
| DF-4FG-8GI | 10-100-1000M 8 ports Industrial POE Switch |
| DF-4FG-16GI | 10-100-1000M 16 ports Industrial POE Switch |
| DF-8FG-2GI | 10-100-1000M 10 ports Industrial POE Switch |
| DF-8FG-8GI | 10-100-1000M 16 ports Industrial POE Switch |
| DF-8GPI | 10-100-1000M 8 ports Industrial POE Switch |
| DF-1FG-8GPIW | 10-100-1000M 8 ports Industrial Managed POE Switch |
| DF-2FG-4GPIW | 10-100-1000M 4 ports Industrial Managed POE Switch |
| DF-2FG-8GPIW | 10-100-1000M 8 ports Industrial Managed POE Switch |
| DF-4FG-4PGIW | 10-100-1000M 4 ports Industrial Managed POE Switch |
| DF-4FG-16GPIW | 10-100-1000M 16 ports Industrial Managed POE Switch |
| DF-8FG-16GPIW | 10-100-1000M 16 ports Industrial Managed POE Switch |
| DF-24GPIW | 10-100-1000M 16 ports Industrial Managed POE Switch |
| ...... | ...... |
Any interest or any inquiry, pls for free to contact.
