500kg/H Vertical Animal Feed Crusher and Mixer Poultry Feed Making Machine Chicken Feed Mixer and Grinder Machine Automatic

Product Description

500Kg/H Vertical Animal Feed Crusher And Mixer Poultry Feed Making Machine Chicken Feed Mixer And Grinder Machine Automatic

Product Description

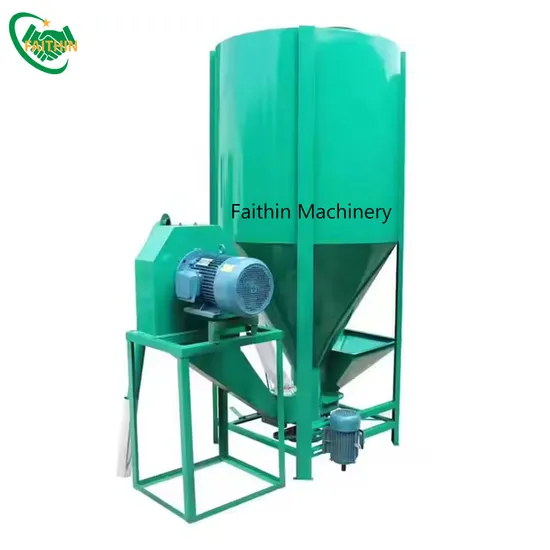

Vertical crushing mixer is a multifunctional equipment including crushing and mixing. It can also be called a feed crushing and mixing combination machine and a feed crushing and mixing group. It is divided into two types: self-sucking feed crushing and mixing integrated machine and forced feed crushing and mixing integrated machine.
The vertical mixer is suitable for mixing various particles and crushed materials.
Capacity is 500kg -10000kg. Heating and drying systems can also be selected.
Can be customized according to the actual requirements of customer factory.
Product Features
This machine can be divided into two parts, a crushing structure and a material structure:
1. The crushing structure:There are two ways to input the materials: automatically or manually. When the raw materials were put into the crushing room, with the beating of the hammer leaf and the scrubbing of the air, the raw materials will be crushed into mealiness or graininess. Then under the effect of the centrifugal air, the meanliness or the graininess will get in to the impeller casing through the sieve pore.
2.The materials mixing structure: with the whirling of the thruster, the materials will be transferred into the material pipeline by the hammer room by force. There, the materials will be lifted to the top of the room and be totally mixed up and down and spinned from left to right via the air. Therefore, the materials can be evenly mixed which is quite ideal.
Product Structure

Product Parameters

Model	Overall Size	Volume	Weight	Power(Crushing+Mixing)
FGM-500	1700*1000*2500mm	500kg	300kg	7.5kw+3kw
FGM-1000	1850*1200*2800mm	1000kg	500kg	7.5/11kw+4kw
FGM-2000	2450*1700*2950mm	2000kg	900kg	11/15KW+5.5KW

Detailed Photos

Customer visiting

Company Profile

Zhengzhou Faithin Machinery Equipment Co., Ltd. is located in Zhengzhou City, the capital of Henan Province. We main engaged in food machinery, agricultural machinery, kitchen equipment, home appliances, mining machinery and so on. We have a young and energetic team that actively helps you solve your confusion during the trading process. In addition to providing you with highly competitive and high-quality products, we also have excellent after-sales service. We have our own factory and overseas customs clearance team, which can provide customs clearance services for most countries. We provide customers with the lowest purchase cost. We have formed an economic entity integrating scientific research development and sales, which has been widely praised by users. Products are exported to Europe, Africa, North America Southeast Asia, The Middle East, South Africa and other 60 countries and regions.
FAQ

1.How do you ensure the quality of your products?
We have 12 months warranty. 100% QC inspection before shipment.
2.How about the payment term?
T/T, L/C, Western union, PayPal, or the way you like, we can discuss details.
3.What about the service after sale?
Once you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to solve the problem.
4.How is it different from other brands in China?
We not only sell machines, we pay more attention to the quality of machines and after-sales service. We always believe that the customer's reputation is the best advertisement. Our company's purpose is: quality, integrity, service, after-sales is the company's life!
5.Which kind documents your company can provided?
After ship depart from China port, we can get documents from Shipping company such as: bill of lading, insurance documents. packing list , commercial invoice . if you need, we also can apply CO, FORM E etc.

---
