Product Details
Product Description
Product Description

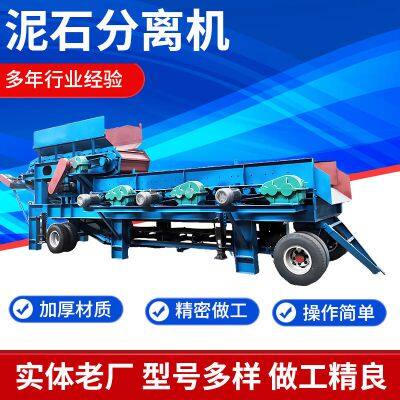

Mud and stone separator is a kind of equipment specialized in separating soil and stone.
I. Working principle
The mud and stone separator achieves precise stratification and rapid screening by simulating the natural precipitation process and strengthening the collision and condensation effect between particles. Specifically, the equipment drives the linkage shaft of the multi-stage device through the motor to carry out regular flipping movements, and the shaft disc configured on the roller is used to move the material forward. The sieve surface is composed of multiple rotating discs arranged in a straight line. There is an equal layout of sieve discs on the roller, which are rotated by the gears to drive the wheel chain. The material is moved by the roller and screened by the sieve plate on the sieve surface. The material larger than the sieve gap is transported from the top of the sieve plate to the next process, while the material smaller than the sieve space falls from the bottom of the collection belt and is sent out of the equipment by the belt machine.
II. Equipment features
1. High efficiency: The mud and stone separator adopts a multi-stage linkage roller sieve design, which can quickly separate the soil from the stone and improve the processing efficiency. The equipment can accurately separate mud and stone mixtures and improve the classification efficiency of solid waste.
Two. Adaptability: The equipment is suitable for various complex environments, whether it is viscous soil with high water content or sand and stone of different sizes, it can carry out particle size separation and maintain continuous operation. At the same time, users can adjust the speed of the screening machine according to the gap of the screening machine and the specific gravity of the material to achieve the best screening effect.
3. Reliability: The design of the mud and stone separator is solid and reliable, the maintenance rate is low, and it can handle a large number of materials. The equipment has a simple structure and convenient maintenance, which reduces the maintenance cost in long-term use.
4. Environmental protection: During the separation process, the equipment adopts a closed design to effectively reduce dust pollution. At the same time, the equipment has low noise and low energy consumption during operation, which meets the environmental protection requirements.
III. Instructions for use
1. Preparation before power-on: The equipment should be fixed on the special foundation and fixed by pre-buried bolts. After the new screening machine is installed, it needs to be checked for idle operation to ensure that the motor rotates synchronously and reversely, and there is no abnormal sound.
Two. Screening materials: When screening materials, the materials should be evenly put into the feed port to ensure the uniform distribution of the materials on the sieve surface. When the material falls, there should be no big impact to avoid damaging the equipment. Users can adjust the speed of the screening machine according to the gap of the screening machine and the specific gravity of the material to achieve the best screening effect.
3. Shutdown and maintenance: When shutting down, the loading should be stopped and the feeder should be turned off first. After the mud and stone separator is finished, the mud and stone separator is finished. The equipment needs to be added with butter, lubricating oil, etc. regularly to ensure the normal operation of the bearing housing, reducer, chain sprocket and other parts. At the same time, the electronic control system should be in charge of a special person to ensure safety.
IV. Field of application
Mud and stone separator is widely used in mining, construction sites, concrete mixing stations, household waste treatment and other fields. In mining, it is used to separate silt and impurities in ore; in construction sites, it is used to separate sand and soil in construction waste; in concrete mixing stations, it is used to clean and separate residual concrete in concrete mixers; in household waste treatment, it is used to separate recyclables and non- Recyclables.
>>
