Wood Crusher Pulverizer for Farm Wood Hanlding Process

Product Description

biomass tree branches log wood chipping machine wood crusher crushing machine
When you send inquiry to ask mobile crusher for wood ,
please tell:
1 What is your raw material and its size?
2 What is the final output size you want?
3 What is the capacity you want per hour?
4 What is the voltage in your place?


CHIPPING&CRUSHING
In the whole charcoal making plant( wood pellet plant,) before raw materials are made into wood briquettebar
(biomass pellets), they need to be cut into much smaller but uniform particles. When the thickness is larger than
10mm or the size is over 50 * 50mm, wood chipper is needed to chip these materials into smaller pieces. Then
hammer mill will crush these small pieces into wood powder with diameter less than 3mm.
Wood Chipping Machine

DISC TYPE WOOD CHIPPER
Spiral chipper disc surface may be less than 400mm diameter cutting logs, wood and branches path material,
applied to paper pulp factory, forest games, paper mills, wood chips and other plants. Mainly by the chipper
host, couplings, chassis, motor, such as four-part composition, in which the host by the chipper knives plate,
upper and lower casing, a material feed port and the mouth parts, etc.
main technical parameters

Model	Capacity	Power	Weight	Main shaft speed	Blade qty	Blade diameter	Feeding inlet size
CF110	0.8-1t/h	7.5-11kw	160kg	650 r/min	3 pcs	400mm	150*150mm
CDRW600	1.5-2t/h	15kw	380kg	600 r/min	3 pcs	600mm	180*150mm
CDRW800	3-6t/h	22-30kw	520kg	550 r/min	4 pcs	800mm	200*200mm
CDRW950	5-8t/h	30-37kw	950kg	550 r/min	4 pcs	900mm	230*250mm
CDRW1150	8-10t/h	55-75kw	2000kg	500 r/min	4 pcs	1100mm	330*300mm
CDRW1410	15-16t/h	110kw	2600kg	500 r/min	4 pcs	1400mm	400*400mm
CDRW1500	15-25t/h	132kw	3500kg	500 r/min	4 pcs	1500mm	480*450mm

Crushing machine
For drying and briquetting process of biomass materials, crushing plant is available. We mainly manufacture two
types of crushing plants for various agro-forestry wastes, which are wood crusher and hammer mill. You should
choose the more workable one according to your raw materials.

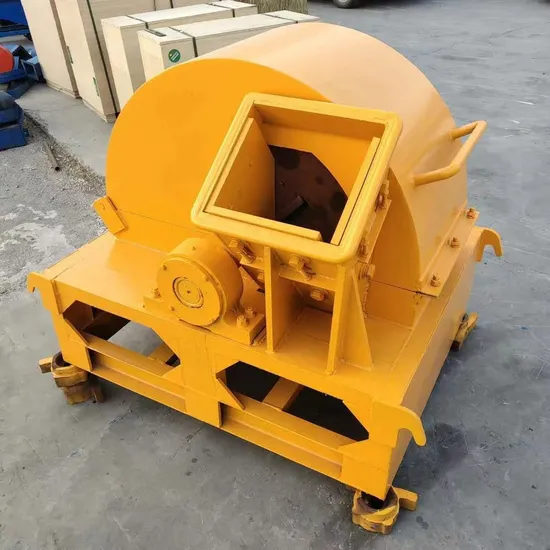

DISC TYPE WOOD CRUSHER
Wood crusher is the special chipping/crushing equipment for raw wood of 50-250mm( diameter).During the
working process, the raw wood will be chipped, re-crushed and sieved, the wood crusher combines both
chipping and crushing in one machine to get the wood sawdust directly. The diameter of wood sawdust can
reach to 2-5mm, which is suitable for further drying and briquetting, no need to use other wood chippers,
wood crusher shows the advantage of precise structure, high capacity, energy consumption, high-quality
finished products, easy maintained, etc

Model	Capacity (kg/h)	Power	Package size(m)	Weight
CDW40	300-400	11kw	1.3x0.9x1.0	350kg
CDW50	400-500	15kw	1.5x1.05x1.3	450kg
CDW60	500-600kg/h	18.5kw	1.5x1.1x1.4	550kg
CDW70	800-1000kg/h	22kw	1.6*1.25*1.5	650kg

---
