Africa Hot Sale Farm Implement 1bj Series 4-5.3m Width Wing-Folded Hydraulic Offset Middle Duty China Disc Harrow

Product Description

Africa hot sale Farm implement 1BJ Series 4-5.3m width wing-folded Hydraulic offset Middle duty China Disc harrow
1BJ series Disc harrow Main Features, Usage, Specification and Technical parameters:

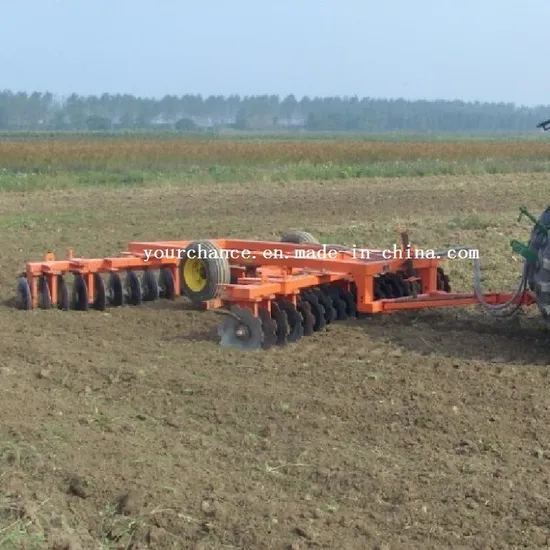

1BJ Series Wing-folded Hydraulic Offset Medium Disc Harrow
Main Features and Usage:
This series Disc harrow is suitable for crushing clods after tillage in sticky heavy fields after ploughing, the scarification before seeding and cleaning away stubble of plants before tillage in the light and middle soils.
This harrow is in reasonable structure of folding wing and hydraulic pressure rubber tire transport, featured by wide range of working, strong capability into the soil and scarification, horizontal hinge, wide coverage and narrow transportation, easy maintenance,high working efficiency,
Main Specification and Technical Parameters:

Model	1BJ-4.0	1BJ-4.4	1BJ-5.3
Overall dimension(mm)	5220x4200x1130	5320x4800x1130	5720x5720x1130
Working width (mm)	4000	4400	5300
Working depth (mm)	140	140	140
No. of disc (pcs)	36	40	48
Dia. Of disc (mm)	560	560	560
Weight (kg)	1600	1750	2400
Match Tractor power (hp)	80-100	90-130	100-150
Productivity (ha/hr)	2.7	3.0	3.3
Linkage	Trailed	Trailed	Trailed

High quality 1BJ series Disc harrow have ISO,CE, PVOC COC, CO etc certificates:
1BJ series Disc harrow by Iron crate case packing :
Best price will be quoted for you as soon as receive your Requirement !

---
