DMS1206 FINCM Steel Structure High Speed CNC Beam Drilling and Sawing Combined Machine Line Web 1250X Flange 600mm

Product Description

Product Description
DMS1206 FINCM Industrial Structural Steel Fabrication Beam CNC High Speed Drilling and Sawing Combined Machine Line Web 1250X Flange 600mm

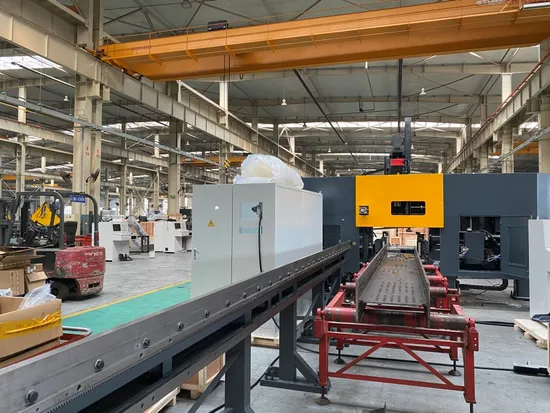

DMS1206 CNC high speed Drilling and Sawing Combined machine line for beams.
Applicable Industry:
Steel structure fabrication, building, bridges, steel girders manufacture for high ways roads and other industries. Main Technical Parameters of Drilling Unit
1)Material Size:
1.1)H Beam: Web Height: 150~1250mm Flange Width: 75~600mm
1.2)U Channel: Web Height: 150~1250mm Flange Width: 75~300mm
1.3)Raw Material length: 3000 ~12000mm
1.4) Material Maximum thickness: 80mm
2). Drilling spindle:
2.1)Qty.: 3
2.2)Maximum drilling diameter: Carbide drill ¢30mm
H.S.S drill ¢40mm
2.3) Spindle taper hole type: BT40
2.4) Spindle motor power: 3×11KW
2.5) Spindle RPM(Stepless speed adjustment): 20~2000r/min
3)ATC:
3.1)Tool magazine numbers: 3
3.2) Tools accomodation: 3×4
4)CNC Axis:
4.1)Numbers: 7+3
4.2)Feeding CNC axis's servo motor power of the Fixing side, Moving side and Middle side: 3×2kW
Positioning CNC axis's servo motor power of the Fixing side, Moving side and Middleside: 3×1.5kW
4.3)Moving speed of 3 postioning CNC axis: 0~10m/min
Moving speed of 3 feeding CNC axis: 0~5m/min
4.4)Up&down movment distance of the fixing side and the moving side: 30~570mm
Middel side's Left and right horizontal distance: 40~1210 mm
4.5)Width inspection travel: 1100mm
Web inspection travel: 290mm
5).Feeding pincher:
5.1) Feeding pincher's servo motor power: 5kW
5.2) Maximum feeding material speed: 20m/min
5.3) Maximum feeding material's weight: 10 ton
5.4.Clamping arm's up & down (vertical direction) travel 520mm
6)Cooling system:
6.1) Compressed air pressure: 0.8Mpa
6.2,Cooling method: Inner cooling + Outside cooling
7)Accuracy:
Within one hole group's adjancent holes'holecenter distance tolerance : ±0.4mm
Feeding material's accuracy tolerance 10m at length direction: ±1.0mm
8) Main machine's overall size(LxWxH): about 6000×2100×3400mm
9) Electrical system's control way: PLC+Bus control
10)Main machine's weight: About 8500Kg
Main parameters of Cutting saw unit:
1) Cutting materail's size
Maximum cutting capacity at 0° 1250 ×600 mm
Maximum cutting capacity at 45° 800 x 600mm
Maximum cutting capacity at 60° 500x 500mm
2)Sawing blade's size: T:1.6mm W:67mm
3)Main motor's power: 15 kW
4)Sawing blade's linear speed: 20~150 m/min
5)Cutting saw's feeding speed: 0~2 m/min controlled by program
6)Cutting angle: -60°~ +60°
7)Work table height: About 850 mm
8)Overall size(LxWXH): About 4910x3090x3200 mm
9)Main Machine weight: About 9000kg
Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooprative Supplier
Product Process Control
Customer Praise
Sales Network
Our Service
FAQ
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
