Gap Bed Lathe Machine Ca6261 Ca6266 Ca6280 Universal Metal 3m Lathe Machines Metal

Product Description

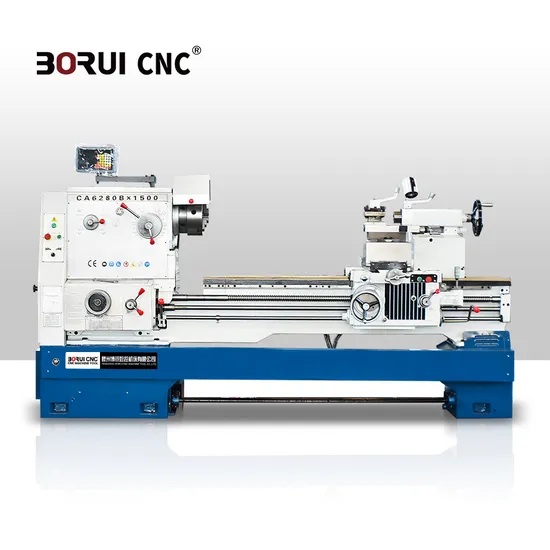

CA6280B Turning Machine Manual Lathe Semi Automatic Lathe Machine Big Bore Gap Bed Lathe Machine For Sale
Product Description
Lathe Description :
* This series lathe machine is suitable for internal and external turning , tapering , and other rotating faces, metric , module and inch threads , as well as drilling and pull oil slot .
* Width of bed is wider than normal lathe machine , with high hardness on guideway , the guideway is through high-frequency quenching , wear-resisting .
* This machine is easy to operate , with rapid device for carriage , design with single hand wheel to operate .
* The strength and rigidity of machine is higher than normal lathe machine , high efficiency , suit for heavy duty machining .

Product Parameters

Type	CA6140(B)	CA6150(B/C)	CA6161(B/C)	CA6166(B/C)	CA6180(B/C)
	CA6240(B)	CA6250(B/C)	CA6261(B/C)	CA6266(B/C)	CA6280(B/C)
Max. swing over bed	400mm	500mm	610mm	660mm	800mm
Max. swing over carriage	210mm	300mm	370mm	400mm	540mm
Max. swing in gap	630mm	720mm	830mm	880mm	1020mm
Max. effective length in gap	210mm
Max. length of workpiece	750/1000/1500/2000/2200/3000/4000mm
Width of bed	400mm
Section of turning tool	25×25 mm
Main spindle motor	7.5kw(10HP)
Spindle
Spindle speed	16--1400rpm(24step)
Spindle bore	52mm (B:80mm),(C:105mm)
Spindle taper	No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed
NO. of feed	(64 kinds)(for each)
Range of metric threads	(1-192mm) (44 kinds)
Range of inch threads	(1-24tpi) (21kinds)
Range of module threads	0.25-48 (module 39 kinds)
Range of diametral pitch threads	1-96DP (37 kinds)
Tailstock
Max. tailstock spindle travel	150mm
Tailstock spindle diameter	75mm
Taper of tailstock spindle centre hole	1-96DP (37 kinds)
Packing dimensions (L*W*H)
Overall dimensions for 750mm	2440×1140×1750mm
Overall dimensions for 1000mm	2700×1140×1750mm
Overall dimensions for 1500mm	3200×1140×1750mm
Overall dimensions for 2000mm	3700×1140×1750mm
Overall dimensions for 2200mm	4030×1140×1750mm
Overall dimensions for 3000mm	4800×1140×1750mm
Overall dimensions for 4000mm	5680×1140×1750mm
Weight (kg)
Overall dimensions for 750mm	2100	2170	2300	2400	2520
Overall dimensions for 1000mm	2200	2260	2380	2580	2720
Overall dimensions for 1500mm	2380	2450	2577	2830	3000
Overall dimensions for 2000mm	2750	2800	3000	3050	3300
Overall dimensions for 2200mm	2800	3000	3150	3400	3500
Overall dimensions for 3000mm	3300	3500	3600	4000	4220
Overall dimensions for 4000mm	3500	3800	3950	4600	4900

Standard accessories
Living Center 3-jaw chuck
Dead Center Toolpost protection
Steady rest Chuck protection
Follow rest Leading screw guard
Foot plate Cooling system
Face plate Lubrication system
Back guard Work lamp
Tool box
Optional Accessories:
Taper attachment 4 jaw chuck
Digital Readout Quick Change Toolpost
As shown in below
Details Display

Packaging & Shipping
paching shiping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for exportTotal 2 manufacturing bases in chinaSino-germany technology cooperationProduction of 8 categories, more than 130 kinds of productsSet up design&research center at TAIWAN Exported to total 48 countries in the world covered most areasOne-stop shopping for nearly all other types' machine tools1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
FAQ
1: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
