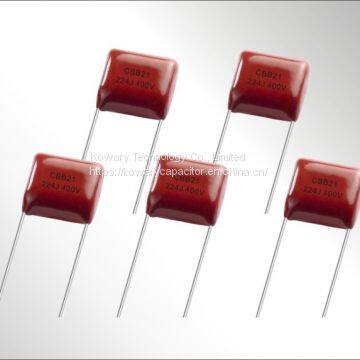

| Features | Metallized polypropylene film. |
| Low loss at high frequency. |
| Small inherent temperature rise. |
| Flame retardant epoxy resin powder coating (UL94/V-0) |
| Applications | Widely used in high frequency, DC, AC and pulse circuits |
| Providing optimum performance with small size in S-correction circuits for color TV set |
| Specially designed for S-correction circuits of large Screen monitor and color TV |
| Suitable for the situation where applies high frequency and high current pulse |
| Specifications | REFERENCE STANDARD: IEC 60384-7 |
| Climatic Category: 40/105/21 |
| Rated Temperature: 85°C |
| OPERATING TEMPERATURE: -40°C ~ 105°C (+85°C to +105°C: decreasing factor 1.25% per °C for UR) |
| CAPACITANCE RANGE: 0.010µF ~3.3µF |
| CAPACITANCE TOLERANCE: ±5%(J), ±10%(K), ±20%(M) |
| RATED VOLTAGE: 100VDC, 250VDC, 400VDC, 630VDC, 1000V, 1250V |
| Test Voltage: 1.6UR for 5sec. |
| DISSIPATION FACTOR: ≤0.001 Measured at 1KHz and 20°C |
| INSULATION RESISTANCE: ≥100 000MΩ, for CN≤0.33µF |
| ≥30 000s, for CN>0.33µF Measured at 20°C, 100V and 1 min |
| Notes | Customization for special specification and requirement is available. |
| Kindly contact with info at for product datasheet. Thanks! |
