China Top Quality Lifting/Launching/Landing/Undocking Ships Marine Rubber Airbags in Shipyards

Product Description

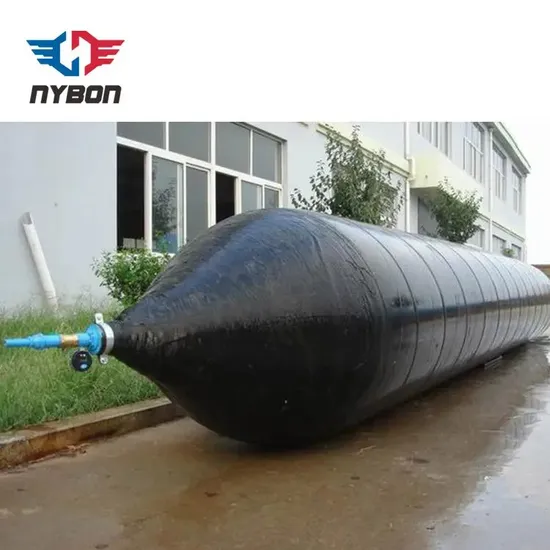

Marine rubber airbag for ship launching
Marine Rubber Airbag is China independent intellectual property rights of innovative products,the products are mainly
applied to ship launching and landing,weight lifting,handling,installation of underwater buoyancy aid etc. Nowadays,
Marine rubber airbags are widely used in the world.The products are less limited by space,no large mechanical
equipment,can shorten the working period and save the unnecessary cost.Through years of development practice,
marine rubber airbag is become more safety effective and green environment protection.

Detail Pictures:

Diameter	Working pressure	Working height	Bearing capacity per unit length KN/m ton/m
D=1.0M	0.20Mpa	0.6m	125.76	12.82
		0.5m	157.16	16.02
D=1.2m	0.17Mpa	0.7m	133.61	13.62
		0.6m	160.30	16.34
D=1.5m	0.13Mpa	0.9m	122.63	12.5
		0.8m	143.03	14.58
		0.7m	163.43	16.66
D=1.8m	0.11Mpa	1.1m	120.96	12.33
		1.0m	138.22	14.09
		0.9m	155.59	15.86
		0.8m	172.85	17.62
		0.7m	190.22	19.39
D=2.0m	0.10Mpa	1.2m	125.76	12.82
		1.1m	141.46	14.42
		1.0m	157.16	16.02
		0.9m	172.85	17.62
		0.8m	188.64	19.23
