Lzkcnc Aluminum CNC V Metal Grooving Machine Steel Sheet Groover for Stainless Steel for Sale

Product Description

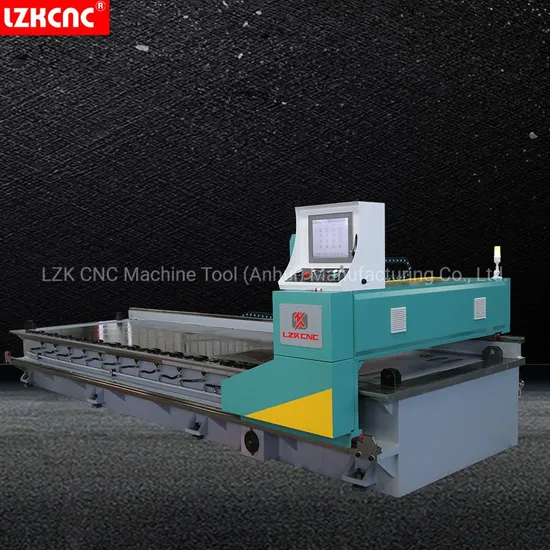

CNC Sheet Metal V-Groove U-Groove Slotting Machine

Function Introduction

This equipment is a fully CNC gantry type slotting machine. This machine tool adopts advanced CNC system with novel design. It has the characteristics of high processing precision, simple operation, no noise and no vibration. The machine tool is used for V-groove, U-groove and other irregular grooves on sheet metal parts (including stainless steel plates, aluminum plates, aluminum-plastic plates, copper plates, iron plates, bakelite boards, acrylic plates and other special plates. Processing, especially suitable for V-groove processing before bending of sheet metal parts.

LZK | Frame structure bed and beam
The bed and beam of the V-grooving machine adopt a frame structure design. The worktable is made of low-alloy high-strength structural steel, and the frame is made of Q345 steel, which is not only strong but also durable.
LZK | Slotting Machine Control System
The control system of Liangzhi slotting machine adopts CNC numerical control and touch screen operation. The operator is easy to learn and understand, and the positioning is accurate. LZK | Slotting machine forming alloy knife
The processing technology of three formed alloy knives at the front and back greatly reduces the iron filings generated during processing. Compared with the traditional five knives, the machining accuracy is also greatly improved. Because the bottom of the groove processed by the five knives may produce multiple bottom lines Article. LZK | Full hydraulic clamping and pressing device
It adopts full hydraulic clamping and pressing, working quickly, pressing the material more firmly, without indentation, and tracking cooling and blowing during all processing. With alarm
LZK | Rack and Pinion Transmission System
Use high-speed alloy steel rack and pinion, large pitch ball screw, and high-precision, silent linear guide. The main shaft system is driven by a high-torque servo motor with an imported star reducer. The gantry adopts 6 ultra-quiet sliding seats, which makes the tool post more stable and faster when processing workpieces.

---
