CNC Vertical Deep Hole Drilling Machine From Temy

Product Description

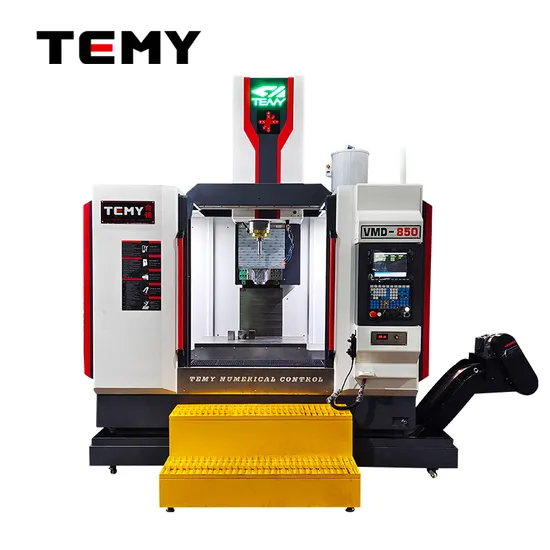

4-Axis vertical deep hole drilling
Model: VMD-850
Based on the four-axis vertical deep-hole drill, this machine is equipped with high-performance intelligent tool library and telescopic guide sleeve base through scientific and technological innovation. It can perfectly realize the functions of automatic gun drill and guide sleeve, greatly improving the processing efficiency and saving invalid time. Intelligent tool library can be loaded with gun drill, milling cutter, twist drill, U drill, tapping, guide sleeve and other tool accessories, which provides powerful support for diversified processing. It can switch freely in drilling, milling and tapping processes. It is suitable for the processing of various complex parts, such as automotive parts, medical equipment, die manufacturing, etc. The field has been widely used.
Parameter:

ITEM	UNIT	VMD-850
Drill hole inner diameter	mm	Φ1.5~Φ20
Max. drilling depth	mm	270
Workbench size (L × W)	mm	1000×500
X-axis displacement	mm	800
Y-axis displacement	mm	500
Z-axis / Z2-axis displacement	mm	350/400
Drilling cutting speed	mm/min	1~300
Spindle specifications		BT40
Max. spindle speed	r/min	10000
Spindle motor power	KW	7.5~11
Z-axis/Z2-axis AC servo motor power	KW	5.9/5.9
X-axis AC servo motor power	KW	3.9
Y-axis AC servo motor power	KW	5.9
Workbench load capacity	Kg	800
Control system		SYNTEC
Total power	KW	22
Machine weight	Kg	5500
Machine size (L × W×H)	mm	3200×3600×3000

---
