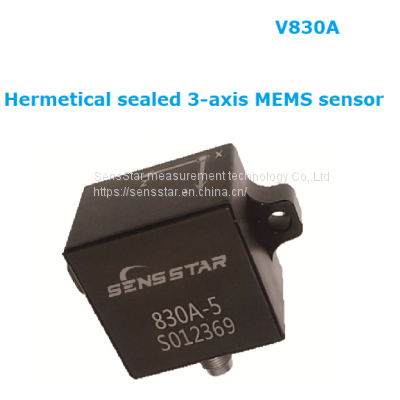

V830A variable capacitance (VC) accelerometer,MEMS vibration sensor

Product Details

Product Description

Product Description
Model V830 is a high-sensitivity, low noise triaxial accelerometer which simultaneously measures acceleration and low-frequency vibration in three mutually perpendicular axial. V830 is triaxial capacitive accelerometer family utilizes a silicon Micro-ElectroMechanical System (MEMS) variable capacitance sensing element. The sensing element of each axis consists of a very small inertial mass and a flexure element cantilever positioned between two plates. As the mass deflects under acceleration, the capacitance between these plate changes. AC excitation and synchronous amplitude demodulation circuitry contained in the accelerometer's internal signal conditioner provides an analog output signal proportional to the applied acceleration. This output signal is scaled as a voltage which is proportional to the applied acceleration. The output signal format is single-ended 2.5±2V. The accelerometer is powered by a single regulated supply between 8 to 36 Vdc. Thermal drift has been compensated by internal circuit for the best environment stability. The sensing element and electronics are contained in a hermetical stainless-steel housing output with a 6 pins M8 connector. Mating cable is available for plug & play testing assembly, refer model 17-L. The accelerometer can be mounted by M3 metric screw or adhesive. V830 is well-suited for a wide variety of R&D applications requiring precision measurements and hermetical seal for extreme environment application.
Feature / Application
• Hermetical seal
• 2 to 500g full scale
• Extreme low noise
• High frequency response
• Excellent thermal stability
• Motion, low frequency, tilt
•Flight test
•Automotive road testing
•Civil engineering structures
•Railway comfort
•Aviation and aerospace

---
