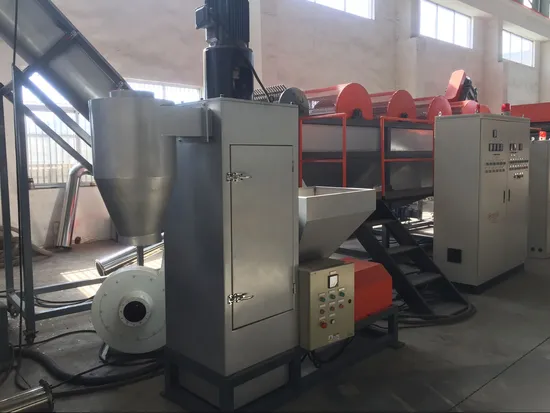

Pipeline Drying Machine for Plastic Washing Recycling Line

Product Description

Description:Pipeline Drying Machine for Plastic Washing Recycling Line
The part contacting material is made of stainless steel, never rust, and pollutes other material. Design adopts semiautomatic control, and only need set heating temperature when working. It can be made different length according to different requirement, and adopt big rotary radius to reduce resistance.
Principle: it adopts electric heating pipe to heat, then the radiator on heating pipe will radiate heat, heat air, fan will blow hot air, hot air and material rotate in sealed pipe, vapor surface water, and realize drying aim.
Applications:
GDG series pipeline dryer is widely used in kinds of plastic, such as plastic sheet, film and pellet dry.
Specifications:

Model	PGZ-2	PDGZ-2
Power(kw)	41.5	55.5
Pipe diameter(mm)	168	219
Width(mm)	1200	1200
Length(mm)	4500	5400
Height(mm)	2200	2200
Heating power(kw)	36	48
Blowing fan power(kw)	5.5	7.5
Output capacity	300	500-800
