Anon High Quality Full Feed Crawler Type Rice Corn Wheat Combine Harvester

Product Description

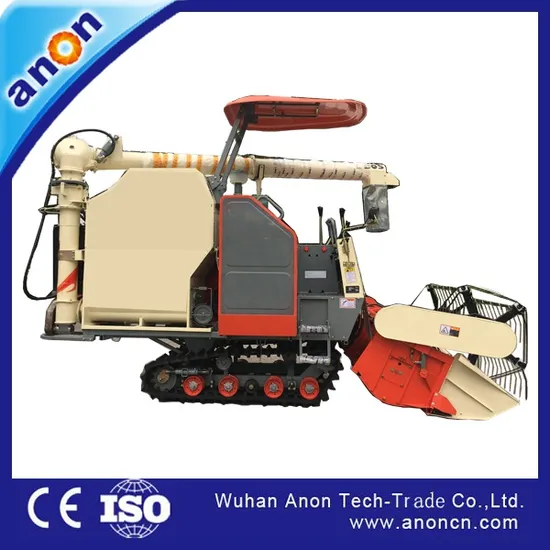

Anon High Quality Full Feed Crawler Type Rice Corn Wheat Combine Harvester
Advantage:
This small combine harvester is specially designed for small field blocks in hilly and mountainous areas, with light weight, flexible and convenient operation; ground clearance of 280mm, strong passability.
4LZ-1.6Z can be equipped with 45 horsepower, 50 horsepower and 60 horsepower engines, 50 gearboxes, 28 stepless transmissions, and crawler bandwidth 400;
Easy operation and maintenance, low fuel consumption, energy saving and environmental protection, harvest experts in hilly and mountainous areas.
Specification of Anon High Quality Full Feed Crawler Type Rice Corn Wheat Combine Harvester:

Overrall dimension	4300*1980*2675mm
Weight	2360kg
Feeding capacity	2.2kg/s
Harvesting capacity	0.2-0.4hm2/h
Engine	Model	N490, 490BT-10
	Rated power(kw/hp)	34/46, 37/50, 44/60(alternative)
	Type	water-cooled, 4-cylinder, Dl-injection, Vertival diesel
	Rated rotation speed	2400r/min
Driving system	Rubber track	400*91*43mm
	Minumum ground clearance	280mm
	Type of gearbox	Hydraulic type+HST(3F,3R)
	Theoretical operating speed	0-5.1km/h
	Type of brake	by foot
	Steering	Clutch and brake
Cutting header	Pick up reel	Eccentric tooth(off-centre), diameter: 823mm, Nos:5
	Height adjustment	Hydaulics
	Cutting bar lenght	1550mm
	Type of header auger	Telescopic screw conveying
	Type of blade	V Type/Left and right
	Rape seed extension	Opthional
Threshing&Separating& Cleaning system	Threshing system	spiked tooth axial flow
	Threshing cylinder size diameter	540*1521mm
	Concave sieve	Grid*4
	Vibrating sieve	Adjustable sieve/Meshing sieve/Hole seive(optional)
	Fan	Type: swirl, Diameter:350mm, Nos:1
Grain storing	Option 1	Grain tank with unloading auger, capacity: 950L
	Option 2	Grain tank with 360° unloading auger
	Option 3	Manual operation

---
