50kVA Three Phase Step up 220V/230V 380V/400V Isolation Dry Type Power Transformer

Product Description

50KVA Three Phase Step Up 220V/230V 380V/400V Isolation Dry Type Power Transformer Product Description SG/SBK three phase transformer (hereinafter referred to as SG/SBK transformer) is widely used in industrial areas. Its rated capacity could be 500VA to 3000KVA for normal products. The voltage ratio could be diverse based on customers' requirements. The normal voltage ratio is 380V/220V. It is applicable in electrical circuit of 50Hz/60Hz and voltage under 1000V. It's an ideal three phase power transformer for low-voltage electrical equipment and electrical transmission control device.
Product Parameters

Product Name	Three Phase Transformer/Converter
Rated Capacity	50KVA (Could be customized)
Product Model	SG-50KVA
Input Voltage	220VAC/380V/240V/110V/400V/415V/440V/480V etc. (Could be customized)
Rated Output Voltage	220VAC/200V/380V/400V/415V/690V/660V etc (Could be tailored)
Working Frequency	50HZ-60HZ
Insulation Class	F
Waveform Distortion	No Additional Waveform Distortion
Phase	Three Phase
Working Temperature	-10ºC~+50ºC
Ambient Relative Humidity	30%-80%
Protection Class	IP 23 (Could be Customized)
Cooling Way	Dry Type Air Colling (With Heat Emission Fan)
Insulation Resistance	≥5MΩ
Working Effiency	>90%
Current Type	AC
Product Type	Dry Type
Ambient Working Temperature	-10~50ºC

Product Advantages SG/SBK transformer features in sound performance, low loss, and suitability for various loads, due to its high-quality raw material and delicate design. SG/SBK transformer could work constantly when it is not over-loaded, which makes it a good equipment for industrial electrical appliance.

Product Details Digital display meters indicating input voltage and output voltage separately.
The figures could be monitored at real time, which is much convenient for users to know the working status of the transformer.
If you have special requirements on the data display, it could be customized.
High temperature resistant enameled wire for transformer winding, which features in:
double layer insulation paint, excellent oxidation resistance, long life span, and ultra-low loss.
Silicon steel sheet is one important part for the transformer. We use brand new silicon steel sheet, which features in high permeability, excellent magnetic property, low temperature rise, and low loss.
Insulation material palys an important part in the product quality. The insulation paper we use is of high voltage resistance, high temperature resistance, and high stability.
Efficient cooling design: there are multiple heat emission holes on the cabinet; and a fan is equiped to help lower the working temperature of the transformer, which would facilitate the sound performance of the transformer.

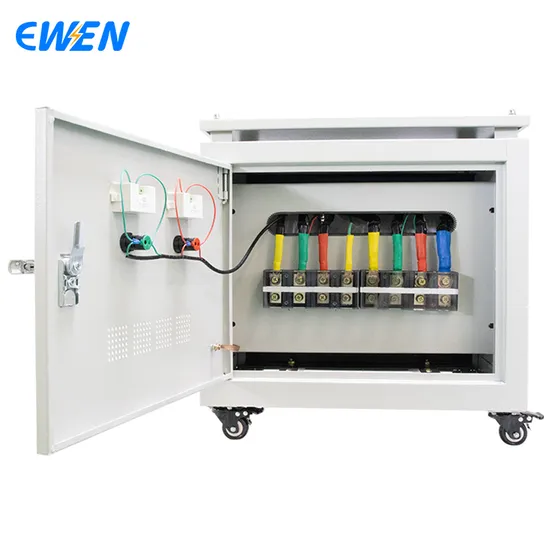

The wiring panel is concise and safe. The wiring board is separate from the main body of the transformer.
There would be clear marks to show input wiring and output wiring.
Product Cases Ewen Electrical has been dedicated to designing customized products for our customers. If you have specific technical requirements, the transformer could be customized according to your needs.
The voltage and rated capacity also could be tailored according to your demands
Ewen electrical is specialized in providing high quality products for our customers. We adheres to the principle of quality and integrity first.
Product Applications The three phase dry type transformer is usually applied in such areas: factory, automation equipment, robot, import and export equipment, servo motor, cnc machine etc.
Company Profile
Ewen Electrical adheres to the business policy of seeking development by science and technology and survival by quality, and wins the recognition of customers with excellent technology, advanced equipment, high-quality products, thoughtful service, flexible business methods and good corporate reputation.
Certifications Ewen attaches much importance to product quality by upholding the principle of developing by technology and surviving by quality. We produce goods according to ISO quality system standards and international and domestic industrial standards, which wins trusts of customers home and abroad. In the future, we would be dedicated to creating economic benefits and social benefits by increasing technology development budget, so as to enable us to become a energy-saving, environmental, technology-oriented enterprise.
Q: How long is the lead time?A: It's normally five to ten days. Certainly it depends on the quantity and product requirements. If the quantity is not that large, 10 days or so. If it's normal products, it takes us less than 10 days to produce it. For large quantity and customized products, it needs 20 to 30 days.Q: How do you control the product quality?A: From material coming to product manufacturing, we have professional staff who are responsible for quality inspection. Only the product is up to standard, can we ship it to our customers.Q: What is the payment terms?A:FOB/CIF/CFR,normally with 30% deposit for normal products and at least 50% advance payment for tailored products and all balance paid before shipment.Q: How long is the warranty?A: We provide one year warranty for our customers. If there is any problem occurred to the product, we could supply the spare parts for you for free. During the warranty period, we would provide technical support with you in case there is any question.Q: Could you please provide technical support in product installation?A: Yes, certainly. We have a professional technical team which is responsible for product installation and application guidance for our customers.Q: What certificates have you obtained?A: We have obtained CE and ISO:9001 certificates so far. We are trying to get more certificates related to our products.Q: Tell me the package of your products?A: For large products, we use strong wooden case for protection. For small products, we use carton.Q: Can you put our logo on your product?A: Yes, we accept OEM and ODM. If the quantity is large, your logo could be put on our products.Q: Where is your major market?A: Our markets include central Asia, East Asia, South Asia, Africa, South America, and North America etc.Q: What about your capacity?A: It depends on the product. For instance, for small-power products, we could produce ten thousand pcs a month while 2000 pcs for larger-power products.Q: What is the material of your products?A: The major material is aluminum or copper. It is decided upon your requirements and your budget.

---
