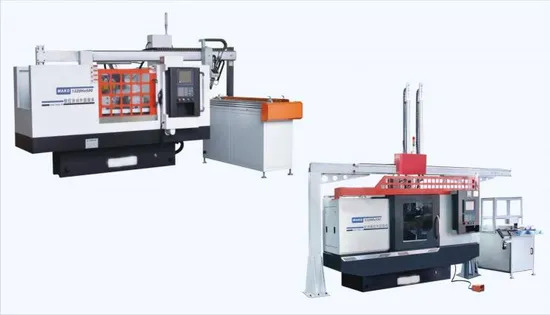

Mkq1320h Makq1320h Mkq1332b, Automatic Cutting Nc Cylindrical Grinder

Product Description

Product Description
Main functions and features
• Automatic loading and unloading CNC cylindrical grindingmachine,suitable for grinding large quantities of parts,one person can easily to operate more than5 machines, with high cost performance.
• The electrical system is controlled by SYNTEC system intelligent touch panel and keyboard screen.
• Man-machine dialogue operation, parameter tables and picture type of programming.
vMaking operationmore simple andconvenient.
• Headstock motor senvo motorzthree point contact workpiece clamping for independent research and development of floating device.
• The system uses double channel control path, enabl ingsimultanrous.
• Grinding products and robotic handling products,improve product cycle times.
• Machine automatic manipulator can up and down from the left and right sides in and out ofthe machine tool,the user put the machine tool is more flexible and convenient.And machine tool can put several machines togetherjorm automatic production lines,greatly improve production efficiency,saving valuable prodrction site.
Product Parameters

Description	(unit)		MKQ1320H×500	MAKQ1320H×500	MKQ1332B×500
Dia to be ground	(mm)		φ8- φ200	φ8- φ200	φ8-φ320
Max.length to be guound	(mm)		400	400	400
Center heighe	(mm)		135	135	180
Distance between centers	(mm)		500	500	500
Headstock center	()		4#	4#	5#
Tailstock center	()		4#	4#	4#
Max.workpiece weight to be grounnd		(kg)	5	5	5-30
Wheel size		(mm)	φ400×50×φ203	φ500×50xφ203	φ600×75×φ305
Wheel peripheral speed		(m/s)	38(45m/s)	38(45m/s)	35(45m/s)
Wheel spindle rotation speed		(r/min)	1815/2150	1452/1720	1210/1433
X
Min.pulse amount in X-axis Z		(mm)	0.001	0.001	0.001
Min.pulse amount in X-axis		(mm)	0.001	0.001	0.001
Total motor power		(kw)	15	22	30
Long it udingal servo motor		(kw)	2.4(11.5Nm)	3.1(15Nm)	3.9(15Nm)
Traverse servo motor		(kw)	2.4(11.5Nm)	3.1(15Nm)	3.9(15Nm)

Detailed Photos

---
