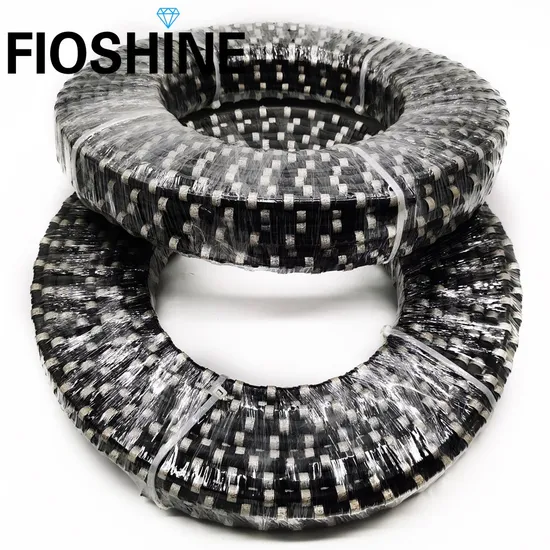

11.5mm Sintered Diamond Wire for Cutting Concrete Reinforced Concrete

Product Description

Product Description Fioshine provides diamond wires developed for cutting a wide range of materials such as concrete, stone, reinforced concrete, underwater steel/pipe cutting in a variety of industries.
Diamond wire saw is manufactured by sintered diamond beads and assemble with rupper and springs.
Our diamond wires work well with almost brands wire saw machine on the market.
There is basically no limit towards the depth or shape of a wire saw application.
We offer various types of diamond wires that has different diamond densities and diamond bead diameters including sintered, electroplated and vacuum brazed options.
Usual diameters are 10.5/11.0/11.5mm with 40beads per meter.
Specifications

Item No.	Diameter	Beads No./Meter	Connection	Beads Type
FSWC10540	10.5mm	40	Rubber+Spring	Sintered
FSWC11040	11.0mm	40	Rubber+Spring	Sintered
FSWC11540	11.5mm	40	Rubber+Spring	Sintered

Advantage&Features Consistently fast cutting performance with excellent lifespan
No depth limit, ideal for cutting in large constructures
Universal application for concrete constructures
High level of safety due to robust construction
Any direction cutting and can be remote controlled
Application&Performance Diamond wire saws are widely used to cut various large concrete constructures, such as renovation, deconstruction and demolition of houses, bridges and large structures, buildings, subways, bridges, cement pipes, and are also used in the most demanding complex engineering applications, such as sunken ships, steel pipes and cables, etc.
From our customers, our diamond wires have fast speed with excellent lifespan of over 2.5sqm/m. Here are some cutting performance reference for you, but actual cutting performance depends on the actual working condition.

Applications	Linear speed m/s	Speed m2/h	Lifespan m2/m
Normal reinforced concrete	22-28	2.5-4	2.0-7.0
Heavily reinforced concrete	18-25	1-2.5	2.5-3

Delivery time Our full production capacity of diamond wire saw is up to 6000meters per month, so that we can give a short delivery time.
For samples, 4 days to be sent. For batch orders, it will be 2-3 weeks depends on the quantity and the production schedule.
Manufacturing&Delivery Production process of diamond wire saw is: Mixing(Diamonds&Metal powders)→Cold pressing molding→Sintering→Assembling→Rubber injection(Plastic injection)→Sharpening→Tension test→Packing. You can see our main manufacturing equipment.
Company Profile FIOSHINE, as an enterprise who specialize in production, R&D and distribution of diamond tools, have been committed to innovating and improving our products to meet market demands and offer you a full range of superior quality diamond products.
Our main products include: laser welded/brazed/sinter hot-pressed diamond saw blades, diamond cup wheels and tooling, laser welded diamond core drills, diamond wire saw… including tailor-made advice for each application as well as appropriate services.
FIOSHINE business covers more than 30 countries and regions including North America, Europe, Middle East, Australia and South America.
We always listen to your requirements and provide you with professional products and solutions. Fioshine always stays close by.

---
