XCMG Official 3/4/5/6/8 Ton Hydraulic Arm Boom Crane Truck Mounted Lorry Crane for Sale

Product Description

XCMG Official 3/4/5/6/8 Ton Used Hydraulic Arm Boom Crane Truck Mounted Lorry Crane for Sale
The products are mature, reliable in quality and superior in performance. The boom adopts a pentagonal arm body section, which has the advantages of good neutrality and strong carrying capacity; the whole machine is compact in structure, stylish in appearance, and small in installation space. The hook adopts a horizontal automatic hook with independent intellectual property rights. The over-coiling protection device is adopted to prevent the safety hazards caused by the wire rope breaking. It adopts integral slewing mechanism.
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work. Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
Advantages and highlights: 1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate. Product Parameters
Straight boom truck mounted crane

Model	Unit	SQ3.2SK1Q	SQ4SK2Q	SQ5SK3Q	SQ6.3SK2Q	SQ8SK3Q
Max Lifting Moment	T.M	6.8	10	12.5	15.7	20
Max Lifting Capacity	kg	3200	4000	5000	6300	8000
Recommend Power	kw	14	16	18	20	27
Max Oil Flow of Hydraulic System	L/min	25	25	32	40	55
Rated Pressure Of Hydraulic System	MPa	20	20	20	20	27
Oil Tank Capacity	L	30	30	90	90	160
Rotation Angle		360°All Rotation
Crane Weight	kg	1105	1271	2260	2160	3315
Installation Space	mm	850	850	900	900	1200

Knuckle boom truck mounted crane

Item	Units	SQ3.2ZK1	SQ4ZK2	SQ5ZK2Q	SQ6.3ZK2Q	SQ8ZK3Q
Max lifting capacity	kg	3200	4000	5000	6300	8000
Max lifting moment	T.M	6.72	8.4	10.5	13.2	16
Max.hydraulic outreach	m	5.69	7.3	8.01	8.01	9.755
Slewing angle	°	370	370	370	360	360
Slewing torque	T.M	1.3	1.5	1.58	0.96	3.56
Stabilizer spread	mm	3462	3462	5210	5210	5210
Fitting space required	mm	850	850	1100	1050	1150
Width folded	mm	2374	2374	2480	2480	2500
Max.operating pressure	Mpa	22	26	28	28	28
Recommended pump capacity	l/min	25	25	25	25	40
Dead weight	kg	1100	1200	2035	2115	2970

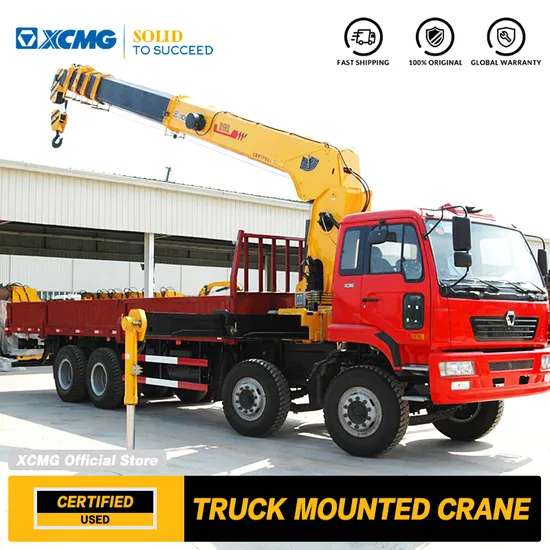

Product Picture
Company Profile
FAQ 1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
