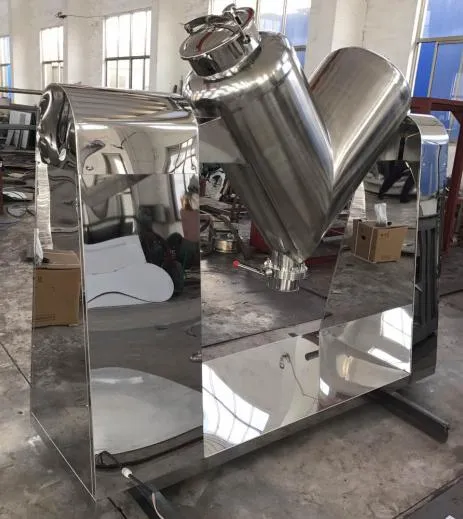

Small Capacity Dry Powder Mixing Machine (V shape blender)

Product Description

Small Capacity Dry Powder Mixing Machine (V shape blender)
We will send you offer if you can provide us below information:
----What materials do you mix? (Names of raw materials?)
----What is the powder fineness/particle size? (how much mesh, mm, micro?)
----What is the bulk density/specific gravity of mixed materials? (how much kg/m3, g/cc?)
----How many kgs to be mixed per batch?
1 Working principle:
One end of the V shape blender is equipped with motor and reducer, motor power is transferred to
the speed reducer by belt, and then transferred to V barrel by coupling. So V barrel runs continuously
and make the materials mixed by moving up and down, back and forth. This type of V shaped mixer is
suitable for case of good fluidity material, small differences materials, having not high requirement on
mixing effect, and having requirement on mixing time. Because material flow smoothly in a "V" mixing
vessel and won't destroy the material original shape, the V type blender is also applicable to mixing
easily-broken, easily-wear materials, fine powder, block materials and materials with certain
moisture content.
2 Technical specifications:

Specs Model	Tank Volume (L)	Capacity (L)	Capacity (kg)	Speed (rpm)	Power (kw)	Weight (kg)
CMPV-300	300	150	90	20	1.1	820
CMPV-500	500	250	150	18	1.5	1250
CMPV-1000	1000	500	300	15	3	1800
CMPV-1500	1500	750	450	12	4	2100
CMPV-2000	2000	1000	600	12	5.5	2450
CMPV-3000	3000	1500	900	9	5.5	2980
CMPV-4000	4000	2000	1200	9	7.5	3300
CMPV-5000	5000	2500	1500	8	7.5	3880
CMPV-6000	6000	3000	1800	8	11	4550
CMPV-8000	8000	4000	2400	6	15	5200
CMPV-10000	10000	5000	3000	6	18.5	6000

3 Structure:
4 Performance & features:
01 Material: stainless steel 304 / 316L (special materials like wear-resistant, anti-corrosion materials available);
02 Surface treatments: polish/sandblasting (special treatment like wear-resistant, anti-corrosion treatment available);
03 Mixer tank: V-shaped;
04 Mixing time: 5-20 minutes (depends on different material features & production requirement);
05 Working model: batch mixing;
06 Speed reducer;
07 Rotation speed: fixed speed (changeable speed available);
08 Openings on top: feeding inlet, manhole (can be customized);
09 Discharge valve: manual butterfly valve (can be customized);
10 Working condition: normal pressure and temperature (pressure & temperature requirement available);
11 Power supply: 220V 50HZ single phase/ 380V 50HZ 3 phase (can be customized);
12 Non ex-proof motor, electronic elements, control cabinet (ex-proof requirement available);
13 Other customized features: to be confirmed;
5 Application industries:
6 Our Factory:

---
