Joston Lab Scale Benchtop Small Batch Extraction Machine Household Essential Oil Extraction Distill Essential Oil Extract Herb

Product Description

High Efficiency Lab Scale Homemade Distiller Essential Oil Extractor
USAGE: IT IS DESIGNED FOR RESEARCH AND SMALL SCALE COMERCIAL EXTRACTION OF BOTANICALS .It is also designed to be as large as possible and still be easy for one person to clean in the kitchen sink. Sturdy stainless steel construction means it is nearly indestructible. The r Bench Top uses ethanol, vodka, Everclear, or water as a solvent

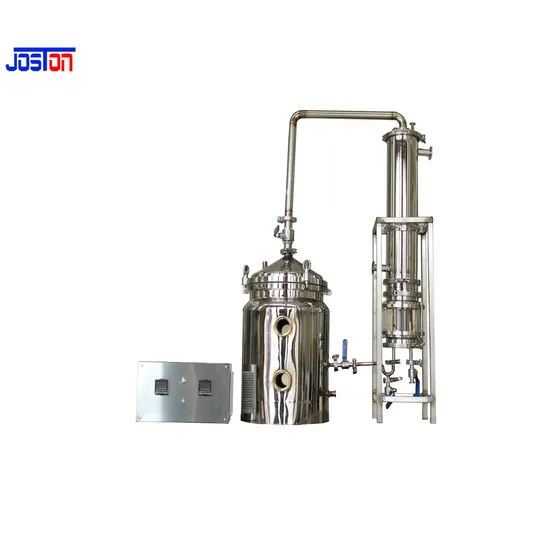

Composite : extraction tank , raw material basket ,condenser ,electrical heater unit and control panel
Working principle : the herbal raw material will be feeding into the feeding basket ,the solvent or water will be adding into the extraction tank ( the solvent solution level will lower than the herbal basket ,the bottom electrical heater will heating ,the vapor will pass the herbal raw material and take the essential botanical out ,the solvent will be condensate by condenser then reflux back to the extraction tank via the herbal basket ,so the effective is very well .
Character: Ethanol, water, or any organic solvent is distilled through a basket of herb to perform extraction. Units can also be configured to recover solvents from extract through distillation. Standard units that operate at atmospheric pressure and vacuum capable units available. BenchTop unit allows you to collect and reuse your solvent. The condenser is cooled by connecting to a cold water source. This unit may be hooked up to a sink to cool, but a recirculating chiller would be a good option to consider. This unit uses for small batch processing products and processes are designed in accordance with the Good Manufacturing Practice bench top systems designed for research and small scale commercial extraction of botanicals. Ethanol, water, or any organic solvent is distilled through a basket of herb to perform extraction. Units can also be configured to recover solvents from extract through distillation. Standard units that operate at atmospheric pressure and vacuum capable units available. The capacity can be from 10L to 50L Vacuum working is optional Structure is compact in a desk table for easy operation

	MDS-30CE	MDS-50CE	MDS-100CE
Feeding Rates(L/h)	5L-30L/H	10L-50L/H	30L-200L/H
CBD Throughput (kg/h)	5 - 30 kg/h	10 - 50 kg/h	30-200 kg/h
Scraper Motor Power (w)	550W	750W	750W
Speed Regulation Mode	Electronic speed regulation	Electronic speed regulation	Electronic speed regulation
Max.Scraping Speed (rmp)	450	Frequency control of motor speed	Frequency control of motor speed
Heat Exchanging Area (m2)	1.00	1.70	2.00
Volume(L)	30L	50L	100L
Standard Feeding Rate (L/h)	5L~30L/H	10L~50L/H	30L~200L/H
Drive Motor Power (w)	200W	1500W	3000W
Heavier component discharge	5L~30L/H	10L~50L/H	30L~200L/H
Lighter component discharge	5L~30L/H	10L~50L/H	30L~200L/H

---
