Plastic HDPE PE PP Mpp Pert PPR PVC Water Pipe Cable Conduit Pipe Extruder Making Machine Tube Extrusion Production Machine Line

Product Description

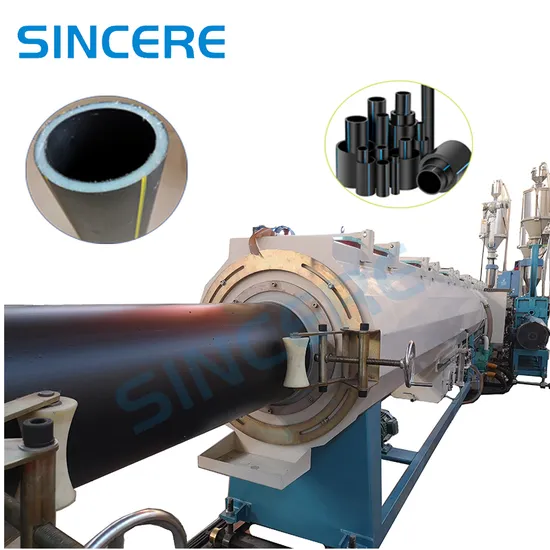

PE HDPE Pipe Extrusion Line Pipes Manufacturing Plant For Water and Gas Supply.
HDPE Gas and Water Pressure Pipe Production Equipment Extruding Line (20-110,315,400,560,630,800,1200,1600mm).
1. HDPE/MDPE fuel gas/water supply pipe features:
This Large diameter HDPE/MDPE fuel gas/water supply pipe extrusion line is mainly used for producing large diameter HDPE/MDPE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.
2. Production line features:
High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.
Extruders: Plastic Single-screw extruders for HDPE/PP, optinal SJ45, SJ55, SJ65,SJ75, SJ90,SJ100,SJ120,SJ150, L/D 33:1 or 38:1.
Extrusion capacity from 40kg/h to 1500kg/h.
Extrusion die-head, extrusion die mould, vacuum calibrators.
Single layer extrusion die mould, double layers extrusion die moudld, three-layers extrusion molds.
Vacuum calibration water tanks, and spray water cooling tank, made of stainless steel ensures precise calibration and fast cooling.
Adopts multi claws haul-off unit: Chipless cutting machine:
speed adjusted by frequency inverter or by servo-motors. Be able to cut large diameter and thick wall pipe, servo-motors
Haulling speed: 0-30m/min
3. Technical parameters:

Model	Pipe Diameters(mm)	Supporting extruder (33:1 or 38:1)	Extrusion capacity(kg\h)	Total Installed Power(kw)
SG-63	16-63	SJ65\33 SJ25\25	120-180	110
SG-110	16-110	SJ65\33 SJ25\25	150-200	130
SG-160	50-160	SJ75\33 SJ25\25	150-220	150
SG-250	75-250	SJ75\33 SJ25\25	280-350	280
SG-315	110-315	SJ90\33 SJ25\25	250-350	350
SG-450	160-450	SJ90\33 SJ25\25	350-450	400
SG-630	315-630	SJ120\33 SJ25\25	550-850	550
SG-800	450-800	SJ150\33 SJ25\25	800-1300	750
SG-1000	600-1000	SJ150\33 SJ25\25	800-1300	750
SG-1200	800-1200	SJ120\33*2 SJ25\25	950-1600	950
SG-1600	1000-1600	SJ150\33*2 SJ25\25	1500-2500	1300
