Product Description
Product Description

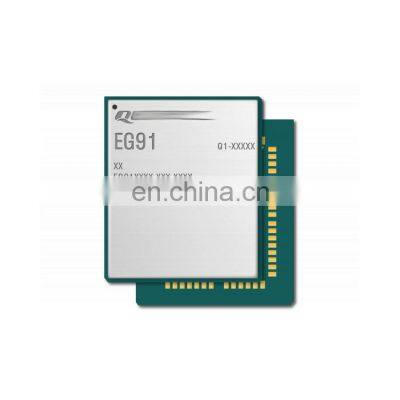

DescriptionLTE EG91 seriesLTE Cat 1 module29.0mm × 25.0mm × 2.3mmSMT form factorLGA packageMax. downlink 10Mbps / uplink 5MbpsExtended temperature range of -40°C to +85°COverviewThe EG91 is a series of LTE Cat 1 IoT modules in an LGA package measuring 29.0mm × 25.0mm × 2.3mm, which meets the 3GPP Release 11 standard. The EG91 is pin-to-pin compatible with Quctel’s UMTS/HSPA+ UG95 and UG96 modules, and LPWA BG95 and BG96 modules, enabling simple, flexible and scalable migration from 2G and 3G to 4G. The series consists of eight variants to meet various geographical demands, which can be compared via the table above.The EG91 provides cost-effective LTE connectivity, delivering maximum downlink rates of 10Mbps and uplink rates of 5Mbps under LTE, is designed using space-efficient surface mounted technology, and features an embedded power management unit for ultra-low deep-sleep current consumption. The module is therefore ideal for size-constrained, low-power IoT applications which are not reliant on high-speed connectivity but do require the longevity and reliability of LTE networks.A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, and Android) allow the module to serve a wide range of IoT applications including smart metering, wearable devices, environmental monitoring, asset tracking, fleet management, and security systems.Key FeaturesPin-to-pin compatible with Quctel’s UMTS/HSPA+ UG95 and UG96 modules, and LPWA BG95 and BG96 modulesMulti-band LTE coverageQuctel enhanced AT commandsUSB 2.0 high speed interfaceMulti-constellation GNSS receiver availableEmbedded power management unitWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
