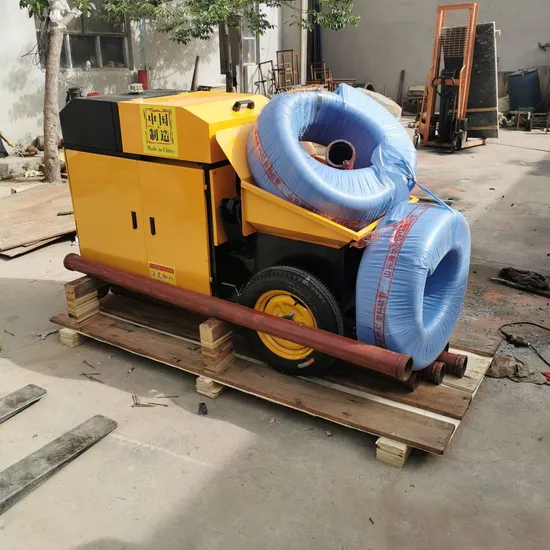

High Power Electric Horizontal Hydraulic Secondary Structure Column Transport Pump Concrete Pouring Pump CE

Product Description

Machine features:
1. There is a switch on the electrical control box for easy adjustment
2. High construction efficiency and good quality.
3. Small in size, easy to transport on site, low in accessory costs, and simple to maintain.
4. Easy to use, fast, material saving, labor saving, and more cost-effective.
This product adopts hydraulic slurry feeding and vibrating screen filtration dual cylinder reciprocating operation, which can fully transport various types of mortar, fine aggregate concrete, etc. in construction applications. This product has the characteristics of large displacement, high pressure, labor and material saving, and flexible movement, and is a commonly used mortar conveying equipment.

Model	QK-15
Motor power	15KW
Maximum conveying capacity	5-8m ³/hour
Maximum outlet pressure	10Mpa
Maximum bone particle size	≤ 20mm
Hopper capacity	130L
Diameter of conveying pipe	80mm
Dimensions	2250 * 1060 * 1320mm

Whole machine weight	700kg
Horizontal conveying distance	50m
Vertical conveying distance	20m

FAQ
Q: Are you a manufacturer of the Secondary pouring pump?
A: Yes, we are. our company has passed ISO and CE certification, products have been exported to more than 20 countries and regions.
Q: How is your after-sales service of the Secondary pouring pump?
A: We offer a one-year warranty for the entire machine and a 6-month warranty for electrical components,We have a number of after-sales services that provide 24-hour technical support via phone and e-mail.
Q: What is your lead time of Chinese Secondary pouring pump?
A: It takes 7-10 days for normal goods and 15-25 for customization.
Q: What is your payment term of the Secondary pouring pump?
A: T/T, L/C.
Q: Is it convenient to visit your factory and Secondary pouring pump? How can I get there?
A: Welcome you to visit our company. We will pick you up when you arrive.
If you can't find what you're looking for, please contact us and place a custom order. We can produce according to your sample or drawing.

---
