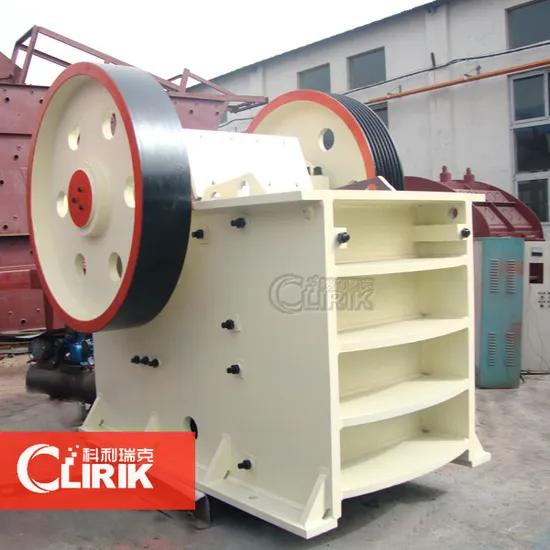

Low Cost Barite Crushing Machine PE Jaw Crusher for Gypsum Limestone Quartz Graphite Calcite Feldspar Fluorite Powder Factory in Malaysia

Product Description

Product Overview
Small Mobile Coal Crusher Machines
1. The best crusher for breaking stone.
2. CE, ISO9001
3. Stone crusher from 1.7-765t/h.
4. Stable performance, long lifecycle of spare parts
5. Testing jaw crusher before delivery is available

Product Parameter of Small Mobile Coal Crusher Machines

Model	Specification (mm)	Size (mm)			Max Feed size (mm)	Discharge Range (mm)	Capacity (t/h)	Speed (r/min)	Motor Power (kw)	Weight (kg)
		length	Wildth
PE-150	150*250	250		150	125	15-45	1.7-5.6	285	5.5	1000
PE-200	200*300	300		200	180	20-50	3.5-13.5	285	11	1500
PE-250	250*400	400		250	210	20-60	5-22	300	15	2800
PE-400	400*600	600		400	340	40-80	18-60	275	30	7000
PE-500	500*750	750		500	425	50-100	43-102	275	55	13500
PE-600	600*900	900		600	500	65-180	51-145	250	75	19200
PE-750	750*1060	1060		750	630	80-180	122-223	250	110	29000
PE-900	900*-1200	1200		900	780	95-180	285-430	200	132	45000
PE-1000	1000*1200	1200		1000	850	195-280	320-470	200	132	51000
PE-1200	1200*1500	1500		1200	1020	150-300	425-765	180	160	100900
PEX-150	150*750	750		150	120	18-48	8.5-28	300	15	3500
PEX-250	250*750	750		250	210	25-60	22-60	300	22	5500
PEX-250	250*1000	100		250	210	25-60	25-65	300	30	7000
PEX-250	250*1200	1200		250	210	25-60	30-78	300	37	8200
PEX-300	300*1300	1300		300	250	20-90	45-110	288	75	12000

Application of Small Mobile Coal Crusher Machines
Jaw crusher is mainly used to crush kinds of mining stones primarily and the largest compression resistance of the material to be crushed is 320Mpa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway and chemical industry. This machine can break materials into medium size and fine size.
Working principle of Small Mobile Coal Crusher Machines
Small Mobile Coal Crusher Machines mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring.The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw. When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which, in turn, realizes the goal of mass production.

Advantages of Small Mobile Coal Crusher Machines
1. Widely used in metallurgy,mining, chemistry, cement, construction, refractory materials and ceramics.
2. CE, ISO9001
3. high capacity, 5-100t/h.

4. Uniform particle size
5. High crushing ratio
6. long lifecyle of spare parts
7. Testing jaw crusher before delivery is available
Other Products offered

Company Profile
Our Company
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china, as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of grinding mill, all kinds of crushers from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine.powder conveying system, etc. We have devoted into grinding field for more than 30 years, we belive only focus can be professional.

Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.
Pre-sale service:
1.Clirik provides a variety of mining equipment for you to choose from.
2.Clirik will recommend suitable production lines and grinding equipment to you according to your site.
3.Clirik customizes the logo and color of the grinding equipment according to your company image.
4.Clirik provides third party inspection to ensure the quality of your grinding equipment.
After-sales service:
1. Clirik provides you with online installation and use videos.
2. Clirik will provide you with technicians to install and debug the grinding equipment.
3. Clirik trains you the technicians who use and maintain the grinding equipment.
4. Clirik provides you with a one-year warranty and lifetime service for the grinding equipment.
Our workshop
Our certificate
Our Exhibition
Customer visiting
FAQ
Inquiry service of jaw crusher
Please fill in your need products and your message and please do not forget mail and/or phone if you like to be contacted. We are the professional machine manufacturer in China with 30 years experience. Pls kindly check the following, in order to select a suitable machine, send you specific techinical data, quotation and the solution drawing for you.
1. What is the raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the output size of your product?
We hope you can tell us these details, we will give you the best quotation, technical data and solution drawing ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!

---
