Welcome to visit

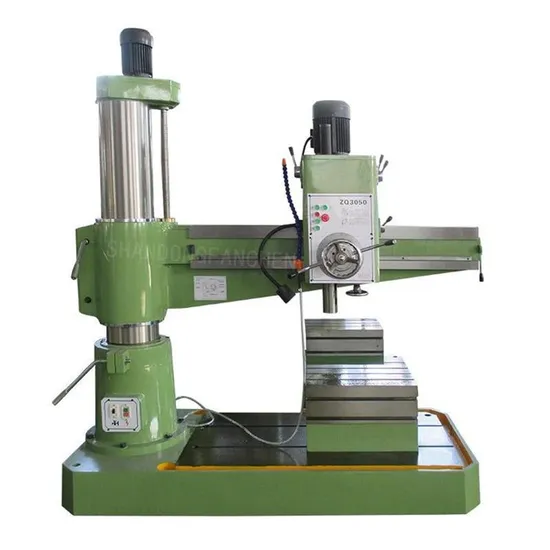

Z3050/Z3040/Z3063 Metal Radial Drilling Hydraulic Drilling Machine

US$2,000.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3050
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Maximum Diameter of Hole
40
Spindle Taper Hole
5
Distance From Spindle End Face to Table
320-1220mm
Spindle Travel
315mm
Spindle Speed Series
16
Spindle Feed Range
0.04-3.20r.p.m
Swing Arm Turning Angle
360
Main Motor Power
4kw
Elevating Motor Power
1.5kw
Colour
Optional
Transport Package
Wooden
Specification
2600× 1500× 1650
Trademark
FANCHEN
Origin
China
Production Capacity
10

Packaging & Delivery

Package Size
220.00cm * 160.00cm * 170.00cm
Package Gross Weight
1700.000kg

Product Description


Main technical parameters Z3050×16
Maximum diameter of hole 40mm
Distance from spindle end face to table 320-1220mm
Distance from spindle center to column busbar 350-1600mm
Spindle travel 315mm
Spindle taper hole 5
Spindle speed range 25-2000r.p.m
Spindle speed series 16
Spindle feed range 0.04-3.20r.p.m
Spindle feed series 16
Swing arm turning Angle 360
Main motor power 4kw
Elevating motor power 1.5kw
Gross weight 3500kg
Overall dimension 250×107×284mm

1:How can choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
