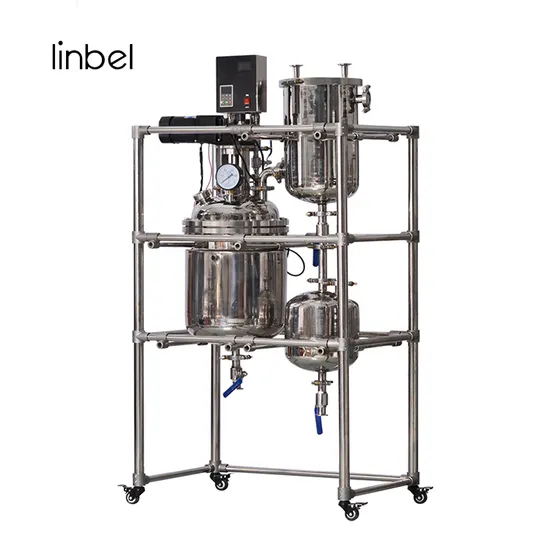

Simple Stainless Steel SUS304 SUS316 High Pressure Lab Autoclave Reactor

Product Description

Model	SSR-20L	SSR-50L	SSR-100L	SSR-200L	SSR-500L
Volume(L)	20L	50L	100L	200L	500L
Material	304/316 stainless steel
Steel thickness(mm)	2/3/4
Inner diameter	300	400	500	600	800
Jacket diameter	400	500	600	700	900
Jacket volume(L)	10L	20L	35L	58L	120L
Motor power(kW)	0.25/ 0.55	0.55/ 0.75	0.75	0.75/ 1.5	2.2
Speed adjustment range(rpm)	30~140
Design temperature	-120~180
Design pressure	Atmospheric pressure
Net size(length * width * heightmm)	450*450*1150	550*550*1200	650*650*1300	800*800*1970	1000*1000*2200
Net weight(kg)	90	120	130	230	430
Packaging size(length * width * heightmm)	500*650*1250	650*800*1300	700*850*1400	950*1050*2050	1100*1250*2350
Packaging weight(kg)	130	150	170	250	580
Kettle cover	Vacuum gauge/ pressure gauge, thermometer/ probe Liquid inlet, solid inlet Vacuum port, spare port, mirror *2 (with lamp and scraper) The interface size is φ 50.5 quick loading chuck (customizable)

FAQ:
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.

---
