Dongguan Factory Direct Selling Disposable Non Woven Hotel Slipper Making Machine

Product Description

Dongguan Factory Direct Selling Disposable Non Woven Hotel Slippers Making EquipmentApplication :
Disposable Non Woven Slippers Shoe Making Machine is an equipment for producing disposable slippers. The products are widely used in hospitals, hotels, massage places, etc. Through ultrasonic technology combined with automatic control components, the product can realize the automatic production of various processes. The size and shape of the product can be customized according to special requirements. Customized and can be printed with personalized patterns to meet different needs. It is the first choice for low-cost, high-efficiency and high-quality production .
Mian Features :
1. The machine has high running speed and stable performance.
2. Using ultrasonic welding technology, the finished product is beautiful, hygienic and environmentally friendly.
3. The entire production line is automated from material feeding, edge sealing and cutting of finished products, which is efficient and labor-saving.
4. Full servo control system to adjust the tension of raw materials to ensure that the tension of raw materials is balanced to avoid mistakes and reduce waste.
5. The frame structure is made of aluminum alloy, and the key parts are made of stainless steel. The whole line is rust-free, durable, easy to clean,beauty etc.
6. Computer PLC programming control, servo drive, high degree of automation. High stability, low failure rate, low noise.
Disposable Slipper Making Machine Main Specifications :
Equipment Composition1 set of touch screen, 9 sets of servo motor, 1 set of PLC, 9 sets of controller.Machine Size :L 4680 * W 880 * H 1680 (mm)Machine Weight : 800 KGSlipper Size : 27cm*11cm (Adults) The molds can be replaced to adapt to different sizes of products.Servo Motors: Xinje 750W 5pcs, 2000W 1pcs.Main Frame : Aluminum alloy Stainless steelVoltage: 220V/50/60HzPower : 10KWWhole Line Efficiency: 80-100+pcs/minProduction Environment Requirements :Temperature 10-35, Humidity 35-65% HR, no dust.Ultrasonic: 20KHZ,2KW *2pcs continuous waves.Welding Strength: The breaking strength of the upper connection is not less than 10N.Feeding Tray: It can adapt to 4 or 5 rolls raw materials with a diameter of 650mm.Raw Material for slipper:
Common disposable non-woven slippers: composed of three layers of 50g non-woven fabric and EVA foam sponge or pearl cotton, the surface layer is ordinary non-woven fabric; the middle insole is 03-0.8CM thick EVA foam sponge or pearl cotton, and the lower layer is Non-slip treated non-woven fabric.
Main Electrical Configuration List :

Item No.	Item Name	Brand	Remarks
1	servo motor	Xinje/China	9 set
2	PLC	Xinje/China	1 set
3	reducer	Made in Tianjin/China
4	bearing	HRB/China
5	optical fiber amplifier	Omron, Boyi Jingke, Panasonic/Japan
6	touch screen	Xinje/Kunlun state
7	relay	Omron/Delixi
8	button	Chint/China
9	ultrasonic	Conprofe/China	2 set

Ultrasonic System :
Check whether the ultrasonic control system is kept clean, especially whether the ultrasonic electric box, vibrator (transducer), and welding head are cleaned on time. Be careful not to have water. It is necessary to confirm the stability of the connecting line. Always check the wear degree of the ultrasonic welding head, and pay attention to the change range of the voltmeter and the ammeter pointer on the ultrasonic electric box.
Appearance :
Clean and tidy equipment. Every day after get off work, it is necessary to arrange personnel to clean the working surface of the equipment after the power is turned off. It should be noted that the equipment cannot be cleaned with water, and non-toxic and volatile cleaning liquids such as alcohol should be used to clean the equipment.

Transmission System :
The transmission system includes motors, gears, reducers, sprockets, chains, conveyor belts and other components. We need to check whether the motor has dust and other things attached to affect heat dissipation, whether the gears and sprockets are oiled, and if there are attachments, it should be Clean it up, whether the tightness of the chain is suitable or not, whether there are foreign objects that have not been cleaned, whether the connecting screws between the transmission parts are loose, whether the lubricating oil of the reducer is enough, usually the machine needs to replace the lubricating oil every 1000-1500 hours.
Rustproof :
The equipment should not be stuck with corrosive liquids and objects. Sweat can easily cause the parts of the equipment to rust. If the equipment does not operate for a long time, it is necessary to apply anti-rust oil to the transmission system of the machine and the parts that are prone to rust.
Operation Instructions :
Start-up steps: turn on the power switch and air source switch, press the (reset) button on each device to reset the device, after the reset is completed, turn the device button switch (manual/automatic) to the automatic state, start the equipment in sequence, and the production line is fully In the automatic running state, the manual only needs to regularly check whether the fabric is short of material, break the belt and deal with it in time. 2Common troubleshooting: The device has a touch screen in three languages: Chinese, English, and Korean. If any abnormality occurs during automatic operation, you need to press the abnormal information on the touch screen to eliminate the abnormality and then press the (start) button, the device will continue to run automatically.

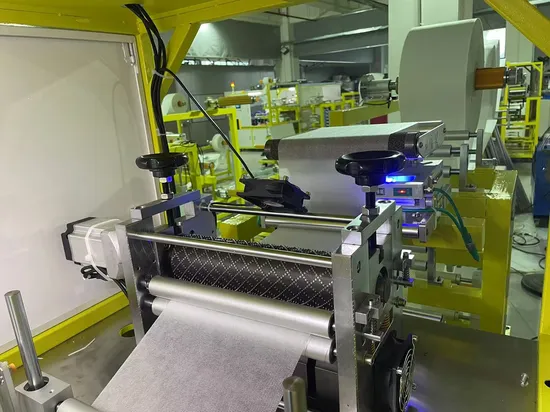

More Detailed Photos :
Packaging :

---
