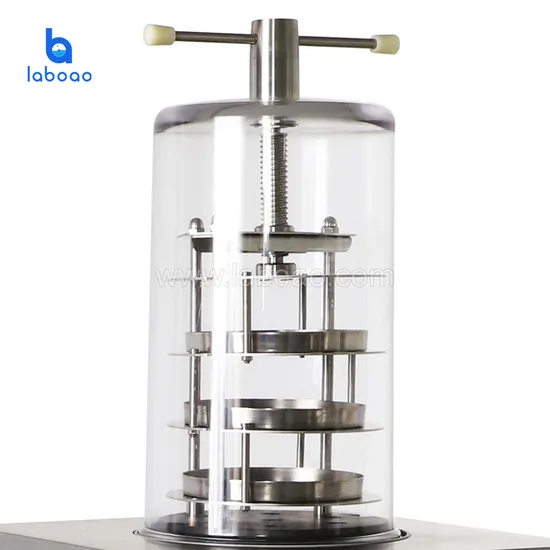

Laboao Vertical Top Press Lab Freeze Dryer

Product Description

LABOAO Manifold Lab Freeze Dryer
Laboratory freeze drying machine is a vacuum freeze drying equipment for colleges and scientific research laboratories. Because of its small size and strong flexibility, it is convenient for freeze drying experiments of various materials and medicines. LABOAO manufactures and provides a wide range of economical and general purpose general-purpose, gland-type caps for drug stoppers in vials, multi-manifold models and T-frames for experiment with eggplant flasks, and easy to operate in-situ products.
Detailed Photos
1. CFC Free refrigeration
2. 7 inch LCD display drying curves, English interface
3. Flexible switching of vacuum units (Pa, mBar, etc.)
4. Cold Trap Electric Defrost
5. Condenser and operation panel are all stainless steel
6. Drying Chamber with organic glass is safe and visible
7. Shelf and tray are stainless steel, tray spacing can be customized
8. Big opening of condenser, condenser with pre-freezing function
9. Low noise compressor, good efficiency,long service life
10. Eutectic point test device is optional
11. Communication interface is optional
12. Cascade refrigeration is optional , applied for -80ºC device
Product Parameters

Model	LFD-12B
Freeze drying area	0.08m2
Condenser capacity	3-4 L /24h
Condenser temperature	-55ºC (-80 ºC optional)
Vacuum degree	< 10 Pa
Material tray	ф180mm, 3 layers
Bulk capacity	0.8 L, 10mm thickness
Vial capacity Φ12mm	560 pcs
Vial capacity Φ16mm	285 pcs
Vial capacity Φ22mm	165 pcs
Style of press	By hand
Cooling	Air,draughty,ambient temperature≤25ºC
Voltage	220V, 50Hz
Host dimension	556×460×(720+430) mm
Power	750W
Host weight	62 kg

---
