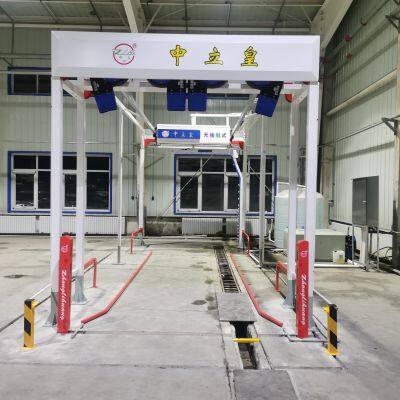

Equipment name: Single arm brushless car washing machine
Specification and model: DXC（E）
1. Car washing machine dimensions: length 7200mm x width 3400mm x height 3000mm
2. Washable vehicle size: not longer than 5500mm x width 2000mm x height 2000mm
3. Electricity standard: three-phase five wire/380V/50Hz, total power 22Kw
4. Car washing speed: 40~60 vehicles/hour, adjustable.
5. Power consumption: 0.5KWh/vehicle
6. Water consumption: 120 L/vehicle
7. Fluid consumption: 30 ML/vehicle (car wash fluid/coating wax)
8. Control methods: unmanned control, PLC intelligent automation control, human-machine interface control, button assisted control.
9. Cleaning method: Adopting a reciprocating "7" shaped top flushing frame structure, the top flushing mechanism performs non-contact high-pressure water 360 degree no dead angle flushing, bottom high-pressure water flushing, magic color shampoo spraying, and car body water wax spraying cleaning modes.
10. Adopting a fixed four fan unit, controlled by an automatic vehicle air drying system, with an air drying rate of up to 91.7%, equipped with a new high-efficiency energy-saving fan from Shanghai Hudi with a single unit power of 5.5Kw and high air volume, high air pressure, and low noise.
11. Whole machine structure: The whole machine structure is designed in accordance with national safety standards, and the steel grade meets national standards. The whole machine frame is made of high-quality Q235 galvanized steel according to national standards, which has been treated with rust removal, anti-corrosion and baking paint technology.
12. Equipment electrical standards: All electrical components of the entire machine comply with national electrical safety specifications, with an electrical protection level of not less than IP65 and an insulation level of not less than Class B, and have CE and CCC certification certificates.
Main FeaturesSense water spraying automatically
Spraying automobile detergent automatically
Cleaning rim automatically
Wax spraying automatically
Copying dryer automatically
Sewage treatment system to purify, circulate and save
