ISO4014 Half Thread Stainless Hex Bolts SS304 Hexagon Head Bolts

Product Details

Product Description

Product Description
Product Name:Standard:Head Type:Thread:Material:Process:High Light:

Hex. Bolt	ISO 4014
Hex.	Half Thread
SS304	Cold Pier
Half Thread Stainless Hex Bolts, Stainless Hex Bolts ISO4014, SS304 Hexagon Head Bolts

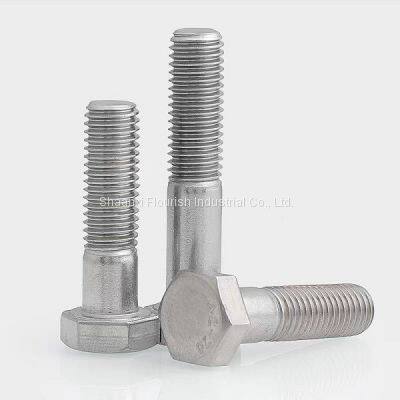

ISO4014 Half thread stainless hex bolts / Stainless Steel SS304 Hexagon head bolts
ISO 4014:2011 specifies the characteristics of hexagon head bolts with threads from M1,6 up to and including M64, of product grade A for threads M1,6 to M24 and nominal lengths up to and including 10d or 150 mm, whichever is the shorter, and product grade B for threads over M24 or nominal lengths over 10d or 150 mm, whichever is the shorter.

Mon	M1.6	M2	M2.5	M3	M3.5	M4	M5	M6	M8
p	0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25
da max	2	2.6	3.1	3.6	4.1	4.7	5.7	6.8	9.2
e min	3.41	4.32	5.45	6.01	6.58	7.66	8.79	11.05	14.38
k max	1.225	1.525	1.825	2.125	2.525	2.925	3.65	4.15	5.45
k min	0.975	1.275	1.575	1.875	2.275	2.675	3.35	3.85	5.15
r min	0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	4
max	3.2	4	5	5.5	6	7	8	10	13
s min	3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	12.73
Mon	M10	M12	M14	M16	M18	M20	M22	M24	M27
p	1.5	1.75	2	2	2.5	2.5	2.5	3	3
da max	11.2	13.7	15.7	17.7	20.2	22.4	24.4	26.4	30.4
e min	17.77	20.03	23.36	26.75	30.14	33.53	37.72	39.98	45.2
k max	6.58	7.58	8.98	10.18	11.715	12.715	14.215	15.215	17.35
k min	6.22	7.32	8.62	9.82	11.285	12.285	13.785	14.785	16.65
r min	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1
max	16	18	21	24	27	30	34	36	41
s min	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38	40

---
