24-Hour R Real-Time Monitoring Online Laser Dust Airborne Particle Counter for Clean Room with Dp

Product Description

Product Description
The suspended particle online monitoring system is used to record the presence of airborne suspended particles in key areas of the production line.It can automatically and continuously monitor and record the particle size and quantity distribution of suspended particles in the monitored ambient air while generating reports.When the state of dust particles in the monitored environment exceeds the warning line and deviation correction line, the system can automatically trigger an audible and visual alarm to notify relevant personnel to handle it, there by helping to ensure that the particle state in the monitored critical environment is in a normal state to ensure the smooth progress of production.
online dust particle counter.The online dust particle counter is an online detection online particle counter that measures the size and quantity of dust particles contained in a unit volume of air in a clean air environment.This online particle counter has multiple models (Y09-SS,Y09-6S, REMOTE3016, REMOTE5102,REMOTE5102P),Adopting a new international sensor for detecting the concentration of dust particles in the air,it is a high-tech product integrating optics and laser technology,electronic technology, computer technology,precision machinery, aerodynamics, and other disciplines. It is characterized by high measurement accuracy,reasonable detection, stable performance, multiple functions, unique modeling,small size, light weight, and easy installation, It is mainly used for online monitoring of cleanliness in clean environments, evaluating the change trend of ambient air dust particles,online monitoring,early warning,and alarming of ambient air quality and fugitive dust,etc...This transmitter is designed to detect particle size classes and sampling methods in accordance with international standards (ISO14644,EU-GMP),and its performance indicators comply with national standards and national metrological verification regulations, It is widely used in online environmental monitoring in pharmaceutical,microelectronics, optics, medicine and health, biological products, atmospheric analysis, aerospace, and other departments.
Eight advantages1. A powerful software system that is compatible with sensors from all over the world,such a lighthouse,METONE,PMS free upgrade.
2.The software system has an open data interface and can be easily connected to users' MEs/s CADA and other systems.
3.The software fully complies with the functions of 21CFR and part11 regulations.
4.Powerful user management function, with over 1000 user management permission settings.
5.With real-time curve,data and historical curve data functions available for selection.
6.Remote monitoring 7/24 real-time monitoring data report.
7.Remote calibration,fast and flexible, without the need for disassembly and return to the factory.
8.HJCLEAN software System Lifetime Free Upgrade.
working principleThis transmitter adopts the principle of light scattering. Under the action of a vacuum pump, air is sucked into the sampling port and flows into the photoelectric sensor.When suspended particles in the air pass through the photosensitive zone, they scatter a certain proportion of their particle diameter.After photoelectric conversion, amplification, and processing,the equivalent diameter and quantity of the collected particles are obtained. The processor forms a communicable code,and communicates with the host computer to send the detected data.

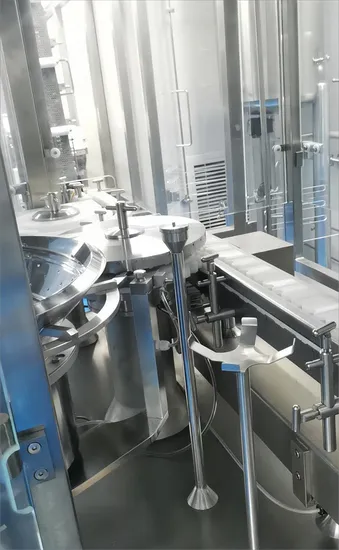

installation example
Product Parameters

Model / Parameter	Y09-6S	REMOTE 3016	Y09-6ST	Y09-SS	REMOTE 5102F	REMOTE 5102P	REMOTE3106P
particle size	0.5,5.0μm	0.3,0.5,1.0,2.0,5.0,10μm	0.5,5.0μm				0.3,0.5,1.0,20,50,10μm
Sampling flow	0.1CFM(2.83L/min)			1CFM(28.3L/min)
Overall dimension (L*W*H)mm	160*120(+air nozzle25)*68	214*115(+air nozzle25)*50	160*120(+air nozzle25)*68	φ80*260	140*100(+air nozzle25)*64	140*100*64
weight	1.3kg	1.5kg	1.3kg	2.2kg	1.3kg	1.6kg	1.6kg
Maximum power consumption	20w			8w		50w
power supply	DC12V±10%				24V±10%
Sampling pumps	Built-in pump,(brand:Thomas)			External pump, centralized sampling		Built-in pump
Detection unit	Pcs/ft3
Concentration error	30%
repeatability	≤10%
Measurement accuracy	±10%
Self-cleaning time	≤10min
Output mode	RS485
Light source and life	Semiconductor laser,life greater than 3000h
environment	Temperature:10--30°C,humidity:20-75%;Atmospheric pressure:86kPa-106kPa

---
