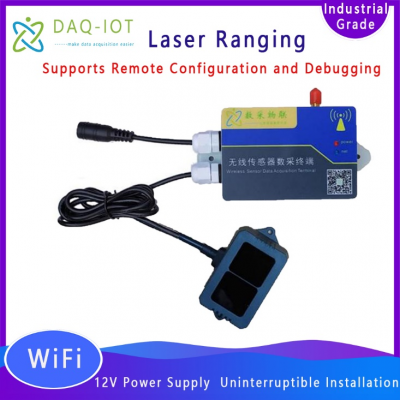

4G/NB-IOT/LoRa/WiFi Wireless Industrial Laser Ranging Sensor
1 Product Overview
SC-GP-TF4G wireless industrial ranging transmitter terminal is a wireless ranging product for industrial field launched by Shanghai Data Acquisition IOT Technology Co., LTD. This product is a single point ranging radar upgraded based on TOF technology (Time of Flight), which has been optimized and upgraded in communication interface, input voltage, reverse connection protection and other aspects. As a new generation of ranging data on the cloud products can be widely adapted to various industrial scenarios.
The sensor terminal supports 4G/NB-IOT/LoRa/WiFi communication mode (the external power supply adopts 4G communication mode by default, and the battery power supply adopts NB-IOT/LoRa communication mode by default), which overcomes the wireless communication occlusion caused by the special environment on the site, greatly simplifying the field deployment time and reducing the construction cost. This terminal can support 12V voltage input, support reverse protection, high measurement accuracy, easy installation.
2 Service ConceptWe solemnly promise that:
What you buy is not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )
This product, the site only ordinary workers connected to electricity installation! No debugging!
We provide free remote guidance, remote configuration and debugging service, and send the data to the user-specified cloud platform.
Free Internet of Things solution consulting services!
3 Product Features3.1 Range Acquisition CharacteristicsAcquisition Type: Single point ranging radar
Measuring Range: 0.1~40m@90% reflectance
0.1~13.5m@10% reflectance
0.1~40m@90% reflectance (100Klux)
0.1~13.5m@10% reflectance (100Klux)
Measurement Error: ±5cm (0.1~5m), ±1% (5~40m)
Collection Frequency: 1 second to 24 hours. Remote configuration is supported.
3.2 Electrical CharacterPower Supply: 12V DC
3.3 Communication CharacteristicsWireless Transmission Mode：4G/NB-IOT/LoRa/WiFi
Communication Protocol: MQTT / TCP / UDP / HTTP / SSL / ModBus RTU, and other protocols can be customized
Data Forwarding: any public network server
Number of Server Centers: up to simultaneous data reporting to 7 cloud servers.
Heartbeat Packet: support custom heartbeat packet, can be set to signal intensity.
Registration Package: support custom registration package, can be set to IMEI code.
Positioning: Support LBS base station positioning to facilitate the query of device location.
3.4 Structural PropertyAntenna Type: sucker or glue stick external antenna (optional built-in antenna)
Material：PC/ABS/PMMA（enclosure）
Main Protection Level: IP65
Size: 69mmx41.5mmx30mm (L * W * H)
Ranging Probe Structure: patch type
Main Mounting Method: wall hanging or screw fastening
Probe Installation Method: adhesive or screw fastening, cable binding installation
3.5 Work EnvironmentTemperature:-20°C～60°C
4 Product Core Advantages
v Simple installation, fast deployment, help the Internet of things project quickly landing.
v Support custom registration package and heartbeat package, facilitate the platform to distinguish devices.
v Support any private Internet of Things cloud platform and configuration software, and provide data protocol docking.
v Support Ali cloud, Baidu Tiangong, OneNet, Tencent Cloud and other mainstream cloud platforms.
v Supports multiple external sensors.
v Non-invasive measurement, which does not affect the normal operation of the equipment.
v Support remote configuration parameters and FOTA remote upgrade to minimize the personnel cost of site construction and maintenance.
5 Data Reporting Communication Protocol5.1 Protocol Parsing Instructions
For UDP / TCP / MQTT / HTTP and other push methods, users should provide the public network IP (or domain name) address and port number of the cloud server to receive the data.
Example of JSON format:
{"T":56.72,"ID":"860344048491162"}
Message analysis:
{
"T": 16.72, // Distance, in meters
"ID": "860344048491162" //Device ID
}
5.2 Agreement CustomizationIf you need to customize other communication protocols, you can contact the business personnel to communicate them.
6 Platform Docking6.1 Default PlatformThe product is connected to our designated industrial Internet of Things platform by default, and the platform interface is as follows:
Computer-side browser interface
Mobile terminal WeChat access interface
