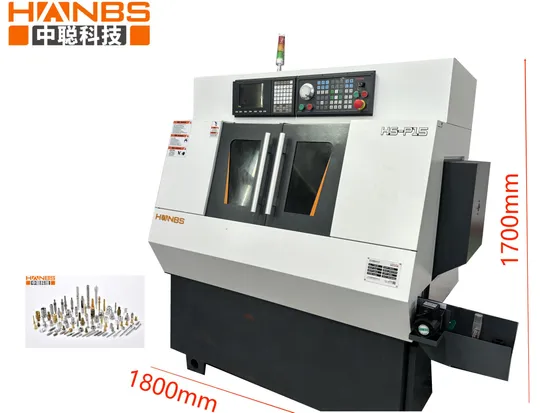

Hanbs Double Spindle CNC Lathe with High Speed Turning HS-P15

Product Description

Hanbs Double Spindle CNC Lathe with High Speed Turning HS-P15

	Project
Processing references	Maximum machining diameter	15mm(spindle)12.7mm(back spindle)
	Maximum machining length 2.5D	35mm
	aximum axial bore diameter	Φ7mm
	Maximum axial work wire size	M6
	Maximum spindle speed(short time)	10000rpm
	Maximum back spindle (short time)	12000rpm
	Maximum workpiece removal length	35mm
Maximum stroke	X1 axis	285mm
	Z1 axis	170mm
	X2 axis	285mm
	Z2 axis	170mm
Tool	Blade size	310mm
	Maximum number of tool installations	8
	Tool (turning tool)	12X12
	Sleeve	Φ20
	Height from blade holder to spindle center	45mm
collet	Spindle collet	18.1x21(M18X1.2)76
	Back spindle collet	HA12
Feeding speed	X1/X2 axis feed velocity	30m/min
	Z1/Z2 axis feed velocity	15m/min
Electric motor	Spindle drive power	2.5/3.7KW
	X1,X2,Z1,Z2 power	0.75KW
	For cutting fluid	0.4KW
Others	Spindle center height	1010mm
	Barometric flow	0.7mpa 0.5m³/min
	Main circuit breaker capacity	40A
	Input power	5.0KW
	Weight	2400Kg
	Overall dimensions	1850X1450X1600mm

1.Screw rod:PMI
2.Guide rail:PMI
3.Bearing:(Japan) NSK / NACHI
4. Servo motor:Taiwan SYNTEC 5.Controller:Taiwan SYNTEC
6. Electrical:Sheider from Germany, Omro from Japan
7. Pneumatic components:Air TAC
8. Cable: German Lenny brand
9.Coupling: Japan Sanmu
F&Q
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.
Q2. How can I place order?
A: You can contact us by email about your order details, or place order on line. Thank you!
Q3. Can you give the favourable price?
A. We have different series machine,but we can recomand you machine according to your products and the quote favourable price for you.
Q4.Can you provide some certificate?
A. We can provide certificate which you need.
Q5.What kind of products your machine can processing?
A.Maxi processing diameter is46 mm.Mini processing daimeter is 3mm.And you can see the above picture about the samples.
Q6.How will the machine be transported?
A.We transport machine by sea.
Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production.
Q8.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.

---
