100% Replace Nhd-2.23-12832ucy3 2.23′ ′ 128*32 OLED Display

Product Description

100% replace NHD-2.23-12832UCY3 2.23'' 128*32 OLED display
PRODUCT DESCRIPTION 128x32 Graphic OLED Display | RYOM223-01
Module size: 63.2mm x 43.1mm
Driver: SSD1305
Modify an OLED display to your exact specifications. Our experts can modify the display's connectors with pin header soldering or customize the display interface with resistors and jumpers. Adjust the size, shape, and pinout of your OLED's cables and PCB to meet your design requirements.

1	Model Number	RYOM223-01
2	Resolution	128*32
3	Display color	Yellow/White/Blue
4	Controller IC	SSD1305
5	Outline Dimensions	63.2*43.1mm
6	Active Area	60*18mm
7	Interface	Parallel, SPI or I2C interface
8	Operating Temp.	-20°C~+70°C
9	Storage Temp.	-30°C~+80°C

MORE INFORMATION ABOUT OLED DISPLAY OLED Displays Lighter, Brighter, and More Efficient
OLEDs offer bright, high contrast graphics with faster response times, wider viewing angles, and lower power consumption than conventional LCDs and VFDs. On this page you'll find all of our graphic OLEDs, available in character type and graphic types with screen sizes ranging from 0.95" to 3.12" and resolutions from 96x64 pixels to 256x64 pixels. Character OLED displays range from 2-line by 16 characters to 4-line by 20 characters and are available in a variety of colors including green, yellow, blue, white, and full color.
DETAILED IMAGES
PRODUCT APPLICATION Cable Customization Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that's precisely designed to make your connections streamlined and secure.

Connector Customization Easily modify any connectors on your display to meet your application's requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors which your display may require.

Interface Customization Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.

PCB Modifications Change the shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.

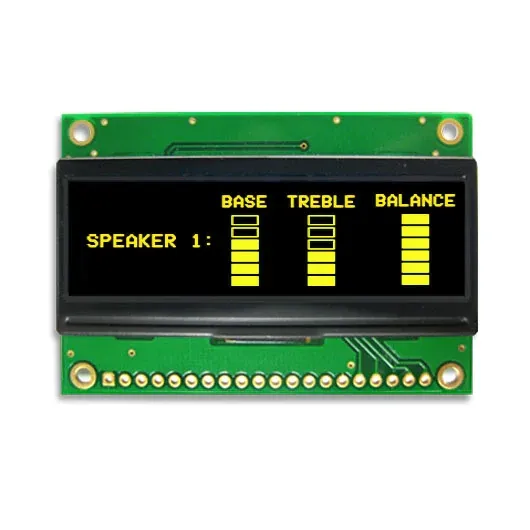

2.23 inch monochrome graphic OLED display module with PCB introduction:
Mono graphic OLED screen 2.23inch with PCB 128x32 pixels is mono oled display module, 128x32 pixels mono oled display screen.
The 2.23 inch monochrome oled display with PCB, is a graphic passive matrix oled display, it have 128x32 dots, wide viewing angle, wide temperature, high brightness, high contrast, fast response time.

Mono graphic OLED display module screen-2.23inch oled screen with PCB:
because it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than TFT LCD module,
and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle.
2.23'' 128x32 OLED lcd display module with PCB could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree.
2.23 inch OLED screen with PCB 128x32 dots is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display.

---
