Efficient Pet Bottle Recycling System for Washing and Drying

Product Description

Plastic recycling washing line
Product Description
plastic recycling washing system is one of the main recycling series of Kitech machinery.This system has smart modular design aiming at rigid plastic and bottles ,Such as Pe ,Ld ,Hd ,Ldpe ,Hdpe ,PC,Ps,Abs kinds of plastic soft recycling .
different module combinations design from kitech according to your reqirements and materials's condition.In range of different raw materials,kitech 300-10000Kg .Economy and high-level prduction lines with different machine configurations.
Introduction:

Type	WT500	WT100	WT2000	WT3000
Capacity(kg/h)	400-500	800-1000	1600-2000	2500-300
Dimension(L*W*H)	35*10*5	50*12*6	70*12*6	120*20*6
Steam consumption(kg/h)	0-150	0-200	0-300	0-600
Chemical consumption(kg/h)	0-3	0-5	0-10	0-20
Energy consumption(kwh)	175	198	306	550
instalation power(kwh)	210	330	498	810
man power (person /shift)	3-5	3-8	3-10	3-12

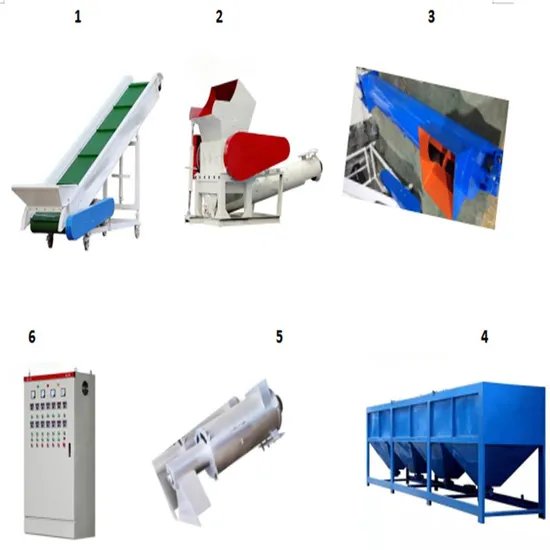

Main Technical Variables:
Belt conveyor:
Heavy duty type, adopt gear motor;
Side walls to avoid spilling of feeding material;
Crusher:
Optimally designed blades are sharp and powerful;
Enclosed cutting chamber to prevent materials flying out;
Knives are externally adjustable;
Shredder:
Special designed hopper to avoid material flying out;
4 way rotating knives with special knife holders;
Extremely robust pedestal bearing housings;
External mounted of bearing pedestal designs;
screw conveyor:
Screw adopt wear resistant stainless steel;
Triple sealing, External bearing design;
washing tank:
Double station discharge valve at bottom;
All Thumb-wheel speed variable by inverter control;
Heavy duty washing, separation of different specific densities material;
Friction washer:
Rotor and blades adopt wear resistant steel;
Rotor with dynamic balance treatment. Accuracy: ±3-5g;
Active material washing to protect downstream units;
Centrifugal dryer:
Rotor with dynamic balance treatment. Accuracy: ±3-5g;
Mild circular screen in polygon 4 piece version;
Washer/dryer housing built in stainless steel welded construction;
Squeezing dryer:
Heavy built shaft and balde;
Double hydraulic press units;
Motorized Screw Squeezing;
Hot air pipe dryer:
Pipeline built in stainless steel welded construction;
All part touch raw materials are stainless steel;
Hot air drying system;
Storage buffer:
Direct connect with pelletizing process;
Large Storage capacity;
Electrical cabinet:
International brand Low voltage components ;
Double circuit safety relay;
Intelligent and modular PLC controlling system
Q1. What are your terms of packing? A: The standard packaging involves placing the machine on a protective pallet and wrapping it securely with plastic film. For exports to European countries, the wooden box will be fumigated. We use PE film for packing or can customize the packing as per the customer's specific request. Special requests can be accommodated as needed. Q2. What are your payment terms? A: We require T/T 30% as a deposit and the remaining 70% before delivery. Photos of the products and packages will be provided before the final payment. Q3. What are your delivery terms? A: EXW, FOB, CFR, CIF. Q4. What is your delivery timeframe? A: Generally, it takes 30 to 60 days after receiving your advance payment. The exact delivery time depends on the specific items and quantities ordered. Delivery time may vary based on order specifications. Q5. Do you test all your products before delivery? A: Yes, we conduct a 100% test on all our products before delivery. Q6: How do you ensure long-term and positive business relationships? A: 1. We maintain high quality and competitive pricing to benefit our customers. 2. We treat every customer with respect, fostering genuine business relationships and friendships, regardless of their origin.

---
