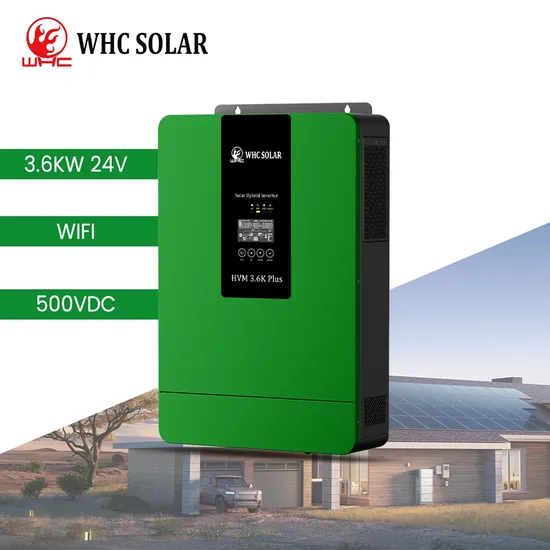

| Model | HVM 3.6K PLUS | HVM 5K PLUS |
| AC Input | ||
| Voltage Range (VAC) | 90~280±3(normal mode);170~280±3(UPS mode) | |
| Frequency (Hz) | 50/60(Auto Adaptive) | |
| AC Output | ||
| Rated Power (KW) | 3.6 | 5 |
| Surge Power (KVA) | 5.7 | 10 |
| Voltage (VAC) | 220V±10% | |
| Power Factor(PF) | 1 | |
| Frequency | 50/60Hz±0.1% | |
| Switch Time(ms) | 10(normal mode)/10 (UPS mode) | |
| Wave Form | Pure Sine Wave | |
| Efficiency | 93% | |
| Parallel Quantity | NA | 9 |
| Charger(PV /AC) | ||
| Solar Charger Type | MPPT | |
| Max PV input Current /Input Power | 18A/5000W | 18A/6000W |
| MPPT Range Operating Voltage (VDC) | 40~500 | |
| Max PV Open Circuit Voltage (VDC) | 500 | |
| Max PV Charge Current (A) | 100 | |
| Max AC Charge Current(A) | 100 | |
| Max.Charge Current(PV+AC)(A) | 100 | |
| Battery | ||
| Rated Voltage(VDC) | 24 | 48 |
| Floating Charge Voltage (VDC) | 27 | 54 |
| Overcharge Protection (VDC) | 30.5 | 61 |
| Battery Type | Lithium and Lead-acid | |
| Interface | ||
| HMI | LCD | |
| Interface | RS485 /RS232 USB /DryContact | |
| Monitoring | WiFi (Optional) | |
| Net Weight (kg) | 6.4 | 9.5 |
| Dimensions (W*H*D) | 490*306*115mm(without bracket) | 510*306*115mm(without bracket) |
| Max.Operating Altitude | 4000m (Derating above 1000m) | |
