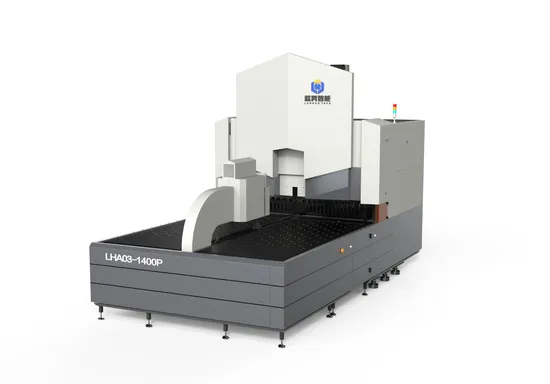

China Top Quality Lanhao Multi-Axis Bending Machine

Product Description

Product Parameters

LHA-1400P-03 Technical parameters
Feeding structure	Pressing arm
Work table structure	brush
System minimum accuracy	0.001mm
Max bending speed	0.2 second/time
Max feeding speed	90m/min
Max.bending width	1400mm
Max.Bending size	L 1400mm X W 1400mm
Max. Bending height (The maximum bending height after customization can reach 300mm)	170mm 300mm ( customizable )
Min. Bending height	3mm
Min.arc radius	0.5mm
Rated power	380V
Motor power	38KW
Average power	About 1.8KW
Noise	About 50 dB
Machine size	L440cm X W190cm X H290cm
Total weight	About 12 tons
User operating environment	Win7 or above
Max. Bending width	UTS 520N/mm2 304 stainless steel 1.0mm UTS 410N/mm2 cold panel 1.2mm UTS 265N/mm2 aluminum panel 1.6mm
Min. Panel width	0.35mm
Four side forming min. Inner size	About 140mmx190mm( excluding inverted folded side)
Double side forming min. Inner size	About 140mm
Bending angle	0-180 degree
Axis	13
