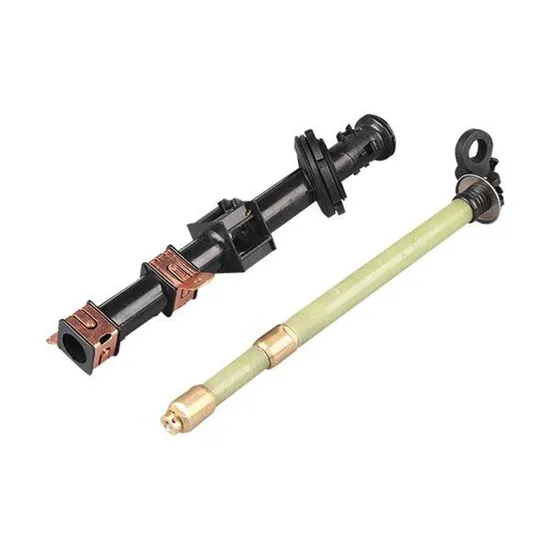

15kv Bay-O-Net Fuse Holder for Transformer

US$1.00-25.00 1 Piece (MOQ)

Basic Info.

Model NO.
15kv
Usage
High Voltage
Shape
Rod Shape
Fusing Speed
Bay-O-Net
Standard
SGS
Use for
Pad Mounted Transformer
Shipping
by Sea/Express
Transport Package
Carton
Specification
As standard drawing
Trademark
OEM & ODM
Origin
China
HS Code
8538900000
Production Capacity
10000/Month

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

Hot Sales
Product Detail:
Bay-o-net Assembly is the brief element of oil-transformer, to protect the equipment when over-current. When install the fuse wire in it, the Bay-o-net will provide the safe, highly efficient protection, according to the current, oil temperature.
The Bay-o-net Assembly is suitable for current sensing fuse wire, dual sensing fuse wire, dual element fuse wire, and ELSP current-limiting backup fuse,etc.
It is suitable for high-voltage power system with alternating current of 50HZ, standard voltage of 15.5kv, current rating of 140A. It must be combining with Magn X Interrupter of ELSP Current-limiting Backup Fuse to protect transformer from overload and short circuit.
Electrical Rating:

Description Parameters
Impulse withstand voltage 150kV
AC withstand voltage, 1min 50kV
Voltage Maximum Single-Phase Interrupting Rating Voltage Thermal circuit
8.3kV 3000A/3500A 10.0kV 160A
15.5kV 2500A/2500A 15.5kV 150A
23kV 1000A/1000A 26.7kV 80A

COMPANY PROFILE: AN HUANG isa modern company of professional design and manufacturer of 3.6kV to 40.5kV Medium Voltage cable accessories, electric components and whole set cabinet Subsidiaries:Anhuang Electric Power Technology Co.,Ltd Zhejiang Anhuang Imp & Exp. Co .. Ltd. We provide high quality, low cost products for utility systems worldwide Company constantly introducing new technology,newcraft, the product structure constantly improved.Our Professional production testing equipment.special production technology and professional service team can satisfy the customers demand. Our professioal engineers,technicansand managers team always keep our promise:ANHUANG is not only provide cost­-effective high quality products.but also provide high quality, efficient, fast service and technical support to ensure customers' require. Our company obtained international quality management system ccertification for ISO9001,ISO1401,OHSAS18001. Our company adhenring to the "safety electricity, forever brilliant " as our enterprise's humanism. Willing to work with you hand in hand to build better future.
