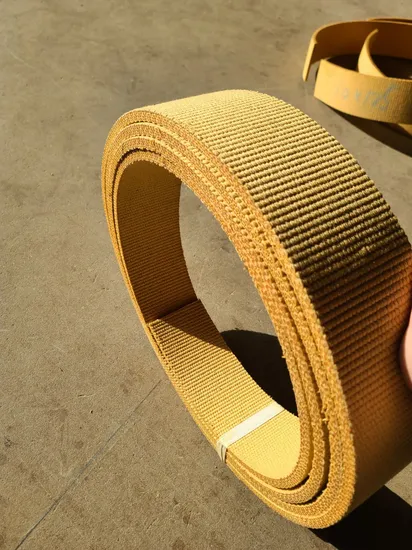

Asbestos Free Woven Resin Brake Lining Roll, with Cooper Wire, Width 1′′-20′′, Thickness 1/8′′-1.38′′, Factory in Shanghai, 20 M / Roll

Product Description

Basic Info.

Model No	XJD2020	Certification	ISO/TS16949, ISO9001
Classification	Windlass	Drum Brakes Classification	Windlass
Main Market	North America, Africa, Mild Eastern, Western Europe, Oceania, Domestic Market	Application	Windlass,Winch
Application	Static Friction	Collor	Yellow
Description	Woven Cotton Brake Lining	Coefficient	0.6
Width	600mm	Thickness	3.2- 25.4mm
Used in	Mooring Winches, Sugar Milling Equipments	Transport package	Pallet
Specification	as required	Trademark	XJD

Origin	Shanghai, China	HS Code	5910000000
Prodution Capacity	10000 piece/year

Packaging&Delivery

Package Size	50.00cm* 50.00cm* 12.00cm
Package Gross Weight	75.0000KG

Suggested operating range
Maximum pressure: psi250
Friction speed: ft/min 5000
Maximum intermittent temperature 650 ºF (340 ºC)
Maximum continuous temperature 600 ºF (315 ºC)
size

colour	yellow
thickness	4mm-30mm
width	30mm-600mm
length	10m, 15m, 20m,.... according to your needs

Characteristics of woven resin brake pads
1. Good wear resistance
2. Good heat resistance
3. High tensile strength
4. Can be applied to riveting FAQ
Q1. How long is your warranty period?
A: Total free warranty service of Starye products is one-year(Artificial damage and incorrect use is not included).

Q2: How can I get more detail of this product?
A: Please contact with our sales team online.

Q3: Do you provide sample ?
A: We can offer samples for testing, nut normally you have to pay its shipping charges.
Q4: What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q5: How about your delivery time?
A: Generally, it will take 10 to 40 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q6: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7:How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

---
