Product Details
Product Description
Product Description
Category:| Industiral Servo Motor | Model:HA-FH13CY-S5 |
Rated Output Power:| 100W | Rated Speed:3000r/min |
Series:| HA-FH Series | Brand:Mitsubishi |
High Light:| ac servo motor,electric servo motor |

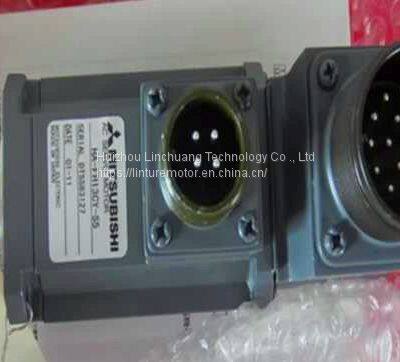

Mitsubishi Melservo 100W HA-FH13CY-S5 Industrial Servo Motor 3AC 100V 1.1A NEW
Name: servo motor
Model: HA-FH13CY-S5
Type: HA-FH series.
Rated output: 0.1KW.
Rated speed: 3000r/min.
Electromagnetic brake: No.
From the vector control technology of AC servo motor, it has become more and more popular.
From the point of view of the real time operating system, it is just a function module that needs to be processed in real time.
Due to the multi function of the controller, intelligent requirements, a large number of signal processing,
Establishment and operation of various mathematical models of adaptive control,
Network communications and other functional modules will be in the real-time operation of the unified scheduling and management of the system to get the correct and reliable operation.
Therefore, the next generation of servo drive controller will be a collection of various modern control technology of the crystallization,
Instead of the traditional sense of power amplifier.
Motor series: low inertia, medium power.
Rated output power: 11.0kw.
Rated speed: 1500r/min.
Whether to take the brake: No.
INSTALLTION of Protection from oil and water
(1) Next, the servo motor is not waterproof (IP44). Do not subject the servo motor to oil and water.
Especially for the HC-MF / HC-KF / HC-AQ / HC-KFS / HC-MFS and HA-FF series, do not subject the
shaft-through portion to oil.
(2) When the gear box is mounted horizontally, the oil level in the gear box should always be lower than
the oil seal lip on the servo motor shaft. If it is higher than the oil seal lip, oil will enter the servo motor, leading to a fault. The HC-MF / HC-KF / HC-AQ / HC-MFS and HC-KFS series servo motor is not equipped with an oil seal and cannot be used with the gear box as described above. Oil should be shut off on the gear box side.
(3) When installing the servo motor horizontally, face the power cable and encoder cable downward. When installing the servo motor vertically or obliquely, provide a trap for the cable.
(4) Do not use the servo motor with its cable soaked in oil or water. (Figure on the right)
(5) When the servo motor is to be installed with the shaft end at top, provide measures so that it is not
exposed to oil and water entering from the machine side, gear box, etc.
(6) If the servo motor is exposed to oil such as coolant, the sealant, packing, cable and others may be
affected depending on the oil type.
(7) In the environment where the servo motor is exposed to oil mist, oil, water, grease and/or like, the
servo motor of the standard specifications may not be usable. Contact us.
(8) In the case of the servo motor with oil seal, the oil seal may sound during operation. It poses no
problems in function.
>>
