Heavy Duty Mt210s Manual Vertical Universal Milling Machine

Product Description

MM-MT210S - Manual Cheap Vertical Universal Milling Machine Processing Manual - MAXNOVO MACHINE

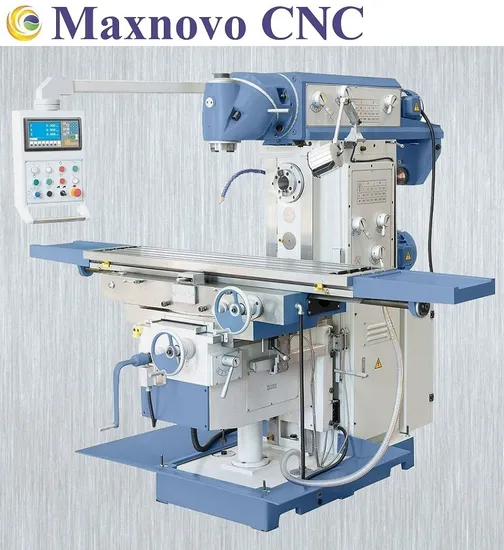

Manual Cheap Vertical Universal Milling Machine Processing (MM-MT210S)
This kind of MM-MT210S is rigid Universal Swivel Head Milling Machine featuring Servo Motor drive feed and rapid feed in all three axes. Such powerful heavy-duty universal milling machine with moveable arm and High versatility due to horizontal and vertical milling performance which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification.
Product Description

Rigid Universal Swivel Head Milling Machine with Servo Motor Drive Feed For Excellent Machining Accuracy
Main Feature :
Convincing Arguments : Quality, Efficiency and Price Servo-Motor Drive in X-axis, Y-axis and Z-axis Versatile range of applications include horizontal and vertical milling performance Rugged machine construction Feed system with Servo-motor, continuously controllable Logical, clearly arranged gearshift for speed change Heavy, solid design using premium cast meehanite Hardened and polished guide-ways guarantee top accuracy Setting of the required feed speed by potentiometer on the control panel Finely graduated feeds in all axis driven by advanced Servo-Motor Universal milling head system Huron "adjusts to various angles" Complete with rapid feed in X-axis, Y-axis and Z-axis to reduce downtime Coolant system Smooth action due to polished gearwheels running in an oil sump Table feed in X-axis, Y-axis and Z-axis automatic Both Vertical Milling and Horizontal Milling All guides tempered and adjustable using V-ledges Machine body in heavy cast iron construction for vibration-free working Working Table can Tilt-able 45 degree is optional spare part 3-axis Digital Position Indicator is optional spare part Certificate of Original (CO, FORM A, FORM E, FORM F )
Product Parameters

Technical Data :

Product Name :	Universal Swivel Head Milling Machine with Servo Motor
Product Item :	MM-MT 210S
Table Size :	1370 X 320 mm
Max. Load Capacity of Table :	350 KGS
T-slot Size :	3 Pieces X 14 mm (width) X 80 mm (distance)
Distance Spindle to Table (Vertical) :	260- 660 mm
Distance Spindle to Table (Horizontal) :	75 - 475 mm
Distance Spindle to Column :	305 - 805 mm
Work Table Tilt-able :	-45 degree to +45 degree (optional)
Horizontal Spindle
Spindle Taper (Horizontal) :	ISO 40 (DIN2080)
Spindle Speed (Horizontal) :	35 - 1500 RPM (12 steps)
Max. Travel of Arm :	400 mm
Vertical Milling Head
Spindle Taper (Vertical) :	ISO 40 (DIN2080)
Spindle Speed (Vertical) :	45 - 1660 RPM (11 steps)
Milling Head Swivel Range :	± 360 degree
Travels
Max. Travel Longitudinal (X):	1000 mm
Max. Travel Cross (Y) :	380 mm
Max. Travel Vertical (Z) :	400 mm
Feed Speed Longitudinal :	30 - 830 mm/min
Feed Speed Cross :	30 - 830 mm/min
Feed Speed Vertical :	23 - 625 mm/min
Rapid Feed X-axis :	1335 mm / min
Rapid Feed Y-axis :	1335 mm / min
Rapid Feed Z-axis :	1000 mm / min
Drive Capacity
Main Motor (Horizontal) :	3000 W
Main Motor (Vertical) :	3000 W
Motor Rating X-axis Feed :	10 Nm (Servo Motor)
Motor Rating Y-axis Feed :	10 Nm (Servo Motor)
Motor Rating Z-axis Feed :	10 Nm (Servo Motor)
Coolant Pump Motor :	90 W
Gross Weight :	2185 KGS
Packing Size :	2000 X 1980 X 2200 mm
Standard Accessory :	Servo Motor, Milling Arbor, Coolant System, Machine Light, Central Lubrication, Drawbar M16, Tools and Toolbox

Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy. Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.
High Precision Milling Machine for Demanding Users !
FAQ
1.Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

2.Question : How can I get some product samples ?
Answer : We are honored to offer you good product samples. New clients are expected to pay for the product sample cost and the international transportation cost. Product Sample cost would be deducted from the customers' next mass production purchase order in future.

3. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.


4. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1-- 2 month since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.

---
