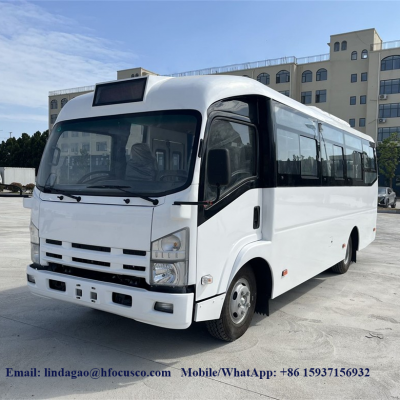

JEEPNEY MINIBUS
What is JEEPNEY
1. Structure:
The structure of Jeepney is based on the Isuzu chassis and to develop a 6 m medium bus coach, removing the rear siege of the cabs, and adding access cover; Chassis changes involving frame, fuel tank position, air filter intake, etc.
2.Seats:
The Seat is made of leather material, longitudinal seat, one row from each left and right side, can seats15-31 passenger.
3.Process:
The production process in our factory is superb, there are advanced production equipment, supporting mold, manufacturing process,It can custom produce for customers, and complete technology R & D, equipment assembly and commissioning .
4.Cabin:
The cab instrument panel, gearbox, engine, etc. are all equipped with Isuzu chassis, with good quality and strong performance.
| TECHNICAL SPECIFICATION |
| Main specification | Chassis brand | ISUZU |
| Chassis model | NPR |
| Overall dimension(L*W*H) | 6950*2250*2800mm |
| Internal height | 1730mm |
| Axle No. | 2 |
| Curb weight | 4100kg |
| GVW | 7300kg |
| Chassis | Cabin | Single row with flip cab, radio |
| Drive modle | 4*2, left hand drive |
| Wheel Base | 3815mm |
| Front/rear suspension | 1110/2025mm |
| Front/Rear Axle | Qingling 3000010-LP51A/2400010-LE40A |
| Frame | 700×170 (4.5) |
| Clutch | 250mm Diaphragm spring clutch |
| Gears | MSB-5SM：5.016;2.524;1.489;1.0;0.713;R4.783 |
| Steering Rack | 803 |
| Air filter | Filter air filter |
| Fuel Tank | 100L |
| Number of leaf springs | 3/3+2 |
| Tyre size | 7.00R16 14PR, with one spare tyre |
| Tyre number | 6+1 nos |
| Engine | Fuel/Engine type: | 4KH1CN5MD(4JH1-TC) |
| Type | 6 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,diesel engine |
| Engine power | 130hp/96kw/2900 r/min |
| Engine emission standard | EURO 5 |
| Displacement | 3L |
| Max. torque | 277N.m |
| Vehicle Performance | Maximum speed | 98km/h |
| Minimum turning radius | 190mm |
| Maximum climbing angle | 30% |
| Van body structure parameters |
| Van body dimensions | Length | 5840mm |
| Width | 2250mm |
| Height | 1830mm |
| Window | Type | Sliding tempered glass, with aluminum frame |
| Air conditioning | Type | Non independent, overhead air conditioner |
| Brand | Kinglong |
| Maximum refrigerating capacity | 16000Kcal/h |
| Seats | Nos. | 15+1 |
| Material | Bus Seats，Imitation leather seats |
>>
