| US$110,000.00 | 1 set (MOQ) |

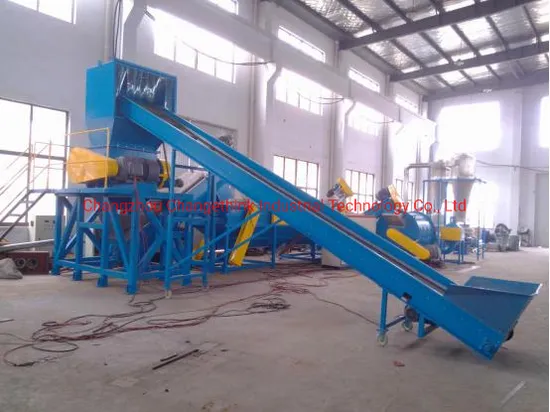

| 01. | Conveyer Belt |
| Working Length: 7500mm Light Rubber Conveying Belt: 800mm wide Conveying Speed: 10-20m/min Motor: 3kw Function: Send the raw material to the crusher | |
| 02. | PC 1200 Wet Crusher (with water) |
| Motor: 75kw Feeding Mouth: 1200×560mm Diameter of rotor: ф560mm Speed of rotor: 580rpm Rotating Knives: 12pc Fixed Knives: 6pc Material of Knife: 9CrSi Helper Motor: 0.75kw, for open the crushing chamber to facilitate repair and maintenance and change blades. There are staircase and maintenance platform for the crusher. There is over-load emergency switch. The advantage of crushing with water: rough remove sand at the first step. Cutting Chamber: The cutting chambers are entirely made of high hardness steel fine ground before assembly. Long life is ensured by the use of heavy wall thickness and high grade materials that will not contaminate the material being ground. The design allows for easy disassembly, repair, and maintenance. Knives: Knife with "V"-type cutting, even cutting material, reducing energy consumption, reduce noise, the knife is very convenient loading and unloading. The knives are manufactured form high 9CrSi for high strength, maximum breakage resistancd, and durability. The design for easy replacement. Rotor: Rotors are made of the finest material (40Cr) for toughness and carefully balanced for stable running. The "V" shaped rotor knives are easy to change and produce a consistent particle size. Drive Pulley: The pulleys are fitted to the rotor shaft with taper lock bushings for maximum security. The inertia effect of the massive pulley assures steady,reliable operation while the taper lock mounting provides ease of maintenance. Screen: The long life screens are either machined from high Strength material or formed from high grade plate as required.Many different hole sizes are offered and easy change allow you to tailor the machine to your needs. | |
| 03. | High Speed Friction Washer |
| Motor: 22kw Screw: ф500mm Screw Rotating Speed: 900rpm Effective Length: 3000mm Screen hole diameter: φ 3mm The parts contacted the raw material are made of 304 stainless steel. Function: This machine has the self dirt-draining function; Removal oil and paper label on the film; The material was original clean by this facility. Working Principle: With the high speed rotating screw, the sand and soil dirt could be separated. | |
| 04. | Sink and Swim washing Machine |
| Washing Roller Motor: 2.2kw*2 Washing Roller quantity: 7PCS Washing Fork quantity: 1PC Dirt Collecting Motor: 2.2kw Dirt Draining Motor: 2.2kw Length: 8000 mm Width: 1300 mm Height: 2000 mm The parts contacted the raw material are made of 304 stainless steel. Function: It has the dirt collecting device can drain the dirt deposit at the bottom of the washing tank. There are one pull forks and seven pull rollers, which are rotating slowly, before the material was send to the dewatering machine, the dirty and soil was clean up absolutely. And the dirty and soil was deposit at the bottom, there is a screw pull them to the discharge port, then discharge them out. | |
| 05. | High Speed Friction Washer |
| Motor: 22kw Screw: ф500mm Screw Rotating Speed: 900rpm Effective Length: 3000mm Screen hole diameter: φ 3mm The parts contacted the raw material are made of 304 stainless steel. Function: This machine has the self dirt-draining function; Removal oil and paper label on the film; The material was original clean by this facility. Working Principle: With the high speed rotating screw, the sand and soil dirt could be separated. | |
| 06. | Sink and Swim washing Machine |
| Washing Roller Motor: 2.2kw*2 Washing Roller quantity: 6PCS Washing Fork quantity: 1PC Dirt Collecting Motor: 2.2kw Dirt Draining Motor: 2.2kw Length: 8000 mm Width: 1300 mm Height: 2000 mm The parts contacted the raw material are made of 304 stainless steel. Function: It has the dirt collecting device can drain the dirt deposit at the bottom of the washing tank. There are one pull forks and seven pull rollers, which are rotating slowly, before the material was send to the dewatering machine, the dirty and soil was clean up absolutely. And the dirty and soil was deposit at the bottom, there is a screw pull them to the discharge port, then discharge them out. | |
| 07. | Screw Feeder |
| Motor power: 3kw Barrel diameter: 400mm Effective Length: 3000mm Screw speed: 75rpm Screen hole diameter: φ 3mm Function: Connected with deposit and float flume, when the material after Washing, all of material was drop into the screw feeder, and then with the feeder helical rotating, the material was send to squeezing dryer granulator. The parts contacted the raw material are made of 304 stainless steel. | |
| 08. | Squeezing dryer granulator |
| Main motor power: 90kw, Six levels of motor Gear box: 330 model, Hardened gear box Diameter of screw: 300mm Screw Material: 38CrMoAl, which is hardened by nitriding treatment. Cutting motor: 2.2kw Cutting knives: 4 PCs Cooling fan power: 3kw Die head automatically heating, overheat auto cooling | |
| 09. | Control Panel |
| SIEMENS AC contactor RKC Intelligent Temperature Control Instrument Digital Display The working state of every part of the machinery will be show on the panel. There is emergency stop switch on the panel. | |
| 10. | |
| 11. | Remark |
| Installed Power: 233.35kw Installed thermal air heater: 12kw Production Line Dimension(L*W*H): 25000*1000*4200mm This equipment is suitable for recycling PP/PE plastic Manufacturing standards: In accordance with CE |
