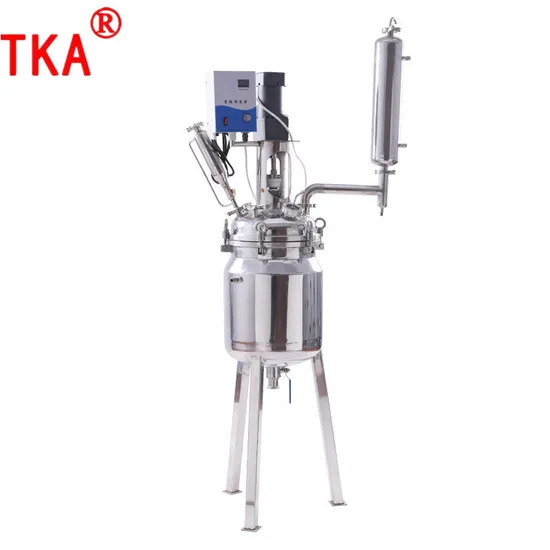

Customizable 100L Stainless Steel High Pressure Reactor and Vacuum Distillation Receiving Tank

Product Description

Customizable 100L Stainless Steel High Pressure Reactor And Vacuum Distillation Receiving TankProduct DescriptionThe double-layer stainless steel reaction kettle is designed with double-layer stainless steel. The inner layer can be stirred and reacted by putting the reaction solvent, and the interlayer can be connected to different cold and heat sources (refrigerated liquid, hot water or hot oil) for cyclic heating or cooling reaction. Under the set constant temperature, in a closed stainless steel reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the requirements of use, and the reaction solution can be refluxed and distilled. It is a modern fine chemical factory, biopharmaceutical and Ideal pilot and production equipment for the synthesis of new materials.
Structural Drawing
Feature
1. In addition, the components are sealed with tetrafluoroethylene, which can maintain a good vacuum degree among similar products in the market, and maintain high-precision sealing under working conditions. There is also a chip collection groove.
2. In the form of mechanical seal, the PTFE connection port is used to maintain a high-accuracy seal under working conditions.
3, PT100 sensor probe, high temperature measurement accuracy, small error, improve work efficiency.
4. PTFE discharge valve, movable interface, quick discharge.
5. After the reaction is completed, the cooling or heating solution in the interlayer of the reactor can be accumulated without accumulation of liquid.
6. The overall stainless steel column frame structure, five-port reaction kettle cover, with a full set of glass for reflux, liquid addition, temperature measurement, etc.
7. Strong torque, no noise.
8. The double PTFE stirring paddle of the reactor is suitable for stirring and mixing liquids with low to high viscosity.Product Parameters

Base parameter	Model	EXBSG-100L
	Dimensions(mm)	550*550*2250
	Kettle body Volume(L)	100
	Interlayer Volume(L)	About 20
	Voltage/Frequency(V/Hz)	220/50
	Reaction temp.(ºC)	-100~299
	Vacuum(MPA)	10-600
	Stirring speed	-0.098
	Power(w)	Anti-Explosion 37
Functional configuration	Seal mode	PTFE
	Kettle cover open quantity	6 pieces(Optional)
	Glass material	GG-17high borosilicate glass
	Measure temp. Hole/distribution droplets hole	25DN
	Condenser hole	40♯
	Reflux inlet	40♯
	Feeding hole	75∅
	Distribution droplets	Constant pressure funnel
	Stirring	Anchor
	Condenser	Vertical high efficiency double reflux condensing pipe

Products Details
Packaging & ShippingPackage Detail
1) Wooden packing2) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.3) You can choose your own freight forwardwe as well.4) Door to Door Delivery to save your energy and time. We'll take the all risks during transportation.
Application Field
Exhibition Show
Company ProfileXi'an Taikang Biotechnology Co., Ltd, is a famous manufacturer of Lab equipment located in the central China. Now has TAIKANG, TKA two well-known brand trademarks. The main products include ultra-high temperature and high pressure reactor, high pressure photochemical reactor, supercritical high pressure reactor, high pressure glass reactor, micro high pressure reactor, high pressure ultrasonic reactor, Ultra-high temperature hydrothermal synthesis reactor, photocatalytic reactor, visual catalytic reactor, hydrothermal synthesis reactor, rotary evaporator, parallel synthesis reactor, high and low temperature circulator, high and low temperature high pressure tubular reactor and other equipment and so on.
Specialize in this field for more than 20 years,TKA brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special for university, research institutes, industries, inspection agencies, etc. Promoting technology progress and improving human life is TKA social mission.
FAQ Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.Q4: How about your quality warranty ?
A4: Normally all TKA products are supplied with a warranty of 12 Months from the date of shipment.
Q5: Do you accept OEM and ODM orders?
A5: Yes,We accept.Q6:What is your terms of payment?A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)Q7:Can we visit your factory?
A7: Welcome visit our factory.

---
