Servo Motor 18.9L PC 5 Gallon Barrel Injection Hollow Molding Production System Based on The Shape

Product Description

Product Description

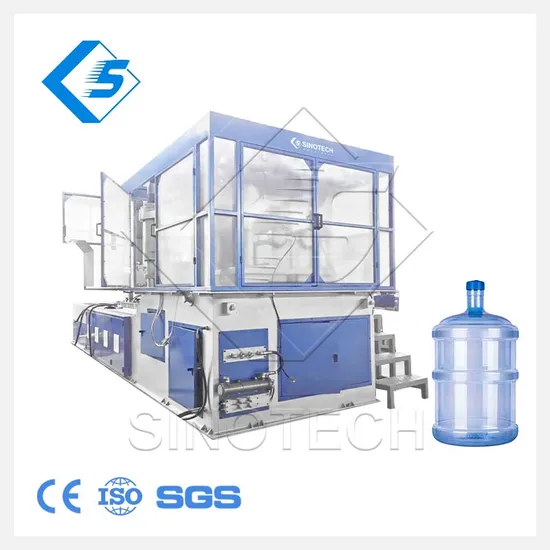

STISB-650PC series automatic high speed injection-blowing hollow molding machines are especially suitable for blowing and moulding PC 5gallon pure water bucket raw material with a production capacity of 70 molds/hour (empty cycle).
Main Features
*The whole process including mould injection stretch blowing and off-molding can be finished within one step,which means more energy efficiency and high quality for product.The injection blowing molding products are thinner and better uniformity than old style ones,which can save 50% materials.Meanwhile hyaienic reguirement is guaranteed.*Compact structure cover small floor coverage which can save more cost than traditional machines.*Widely used for manufacturing bottles for pharmaceutical healthcare,food beverages cosmetics lamp shade and other applications.*Can use recycling material with the lowest cost
Product Parameters

Technical Specification	Unit	STISB-650PC series
Maximum product volume	L	18.9 (Based on the shape of the product)
Extrusion system
Screw diameter	mm	75
Screw length to diameter ratio		22:1
Screw speed	rev/min	10~80
Plasticizing ability	kg / h	80
Number of heating sections of barrel		4
Barrel heating power	KW	20
Clamping device
Effective plane size of template	mm	860 x 610 (width*height)
Template spacing	mm	250~800
Clamping force	KN	650
Hydraulic system
Servo pump power	KW	45WL*3
Air pressure	Mpa	1.2
Work pressure	Mpa	10
Air consumption	m³/min	0.8
Electrical control system
Water supply pressure	Mpa	0.3-0.5
Voltage	V	AC380V±10%
Frequency	HZ	50
Wire system		Three-phase four-wire system
Total rated power	KW	120
Average energy consumption	KW/h	50
Machine weight	ton	20

Detailed Photos
Extrusion system:this system adopts imported automatic temperature control device, screw hydraulic motor drive + double cylinder injection mode.
Clamping device:the hydraulic fixed type non pull rod mold opening and closing mechanism has the advantages of fast speed, convenient demoulding and good stability
Hydraulic system:the whole hydraulic system adopts imported components and full servo flow control.
Electronic control system:this system adopts Japanese programmable controller, all adopts world famous brand electrical components
Remove molding disadvantage factor, least molding step
Single step improves accuracy,optimizes working procedure Putting away complicated, making a way to produce a reliable product and save energy as well. PET material in each procedure malfunctionreject rate is 1%
Compare with One-step and Two-step:

Molding	Process	Structure	Manpower/Energy/Space	Product Quality
One-step	From preform to product	One machine	Little	Not affect by damp and less pollution; Various kinds of shape
Two-step	Injection and blow molding are two separated process	1.Injection molding machine 2.Preform transiting machine 3.Reheating, stretch and off-moulding machine	More	Easy affect by damp and polluted; Singleness shape

Final Product

Related Products

1-1000ML Pet Bottle Injection Stretch Blow Molding Machine PP Bottle Injection Blow Molding Machine Company Profile
Certifications

FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's the advantage of SINOTECH? We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
