Recommended by Technical Hydraulic Multi Jack

Product Description

Product Description

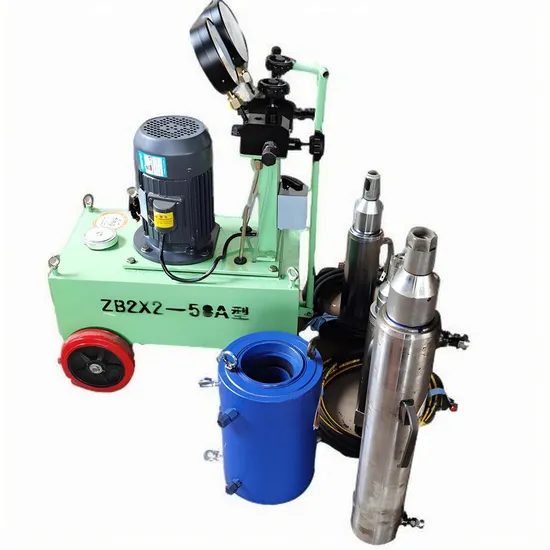

Hydraulic Stressing Jack
Hydraulic Stressing Jackhas the advantages of small volume, light weight, good sealing performance, high strength and reliability, and strong versatility, and Hydraulic Stressing Jack is widely used in post-tensioning prestressing construction. Hydraulic Stressing Jack is equipped with different accessories, and can be tensioned porous position group anchors and various types of clip group anchors.large tonnage jack 65-600 tons; bridge hollow steel strand Jack.

Product Parameters
Parameters of Hydraulic stressing jack:

Model specifications	Nominal tensile force (KN)	Nominal oil pressure (Mpa)	Through-hole diameter (mm)	Install limit plate aperture (mm)	Mounting tool (mm)	Outside diameter size (mm) Diameter * Height
YDC650	650	48	72	99	95	200*385
YDC1000	1000	50	78	111	111	230*385
YDC1500	1500	52	94	150	150	270*390
YDC2000	2000	53	118	177	177	320*400
YDC2500	2500	52	128	210	185	345*400
YDC3000	3000	52	135	190	185	370*400
YDC3500	3500	51	160	232	232	420*400
YDC4000	4000	52	165	252	252	450*410
YDC5000	5000	52	196	260	265	500*410
YDC6500	6500	53	220	295	235	580*420
YDC10000	10000	50	270	440	415	740*570

Product Features
1 main part of the jack is made of high-strength steel, which has the advantages of compact structure, lightweight, small size, and characteristics.
2 short axial lengths, steel wire tension for short length, can save steel material.
3 lifting and flexible, durable, easy operation, and convenient maintenance.
Product applications

Application of Hydraulic stressing jack:
Large buildings are widely used in post-tensioned structures, prestressed concrete bridges, rock anchoring, hydraulic structure, ground anchor, and other major projects. Installation Instructions
Precautions for operating hydraulic stressing jack:
(1) the reserved corridor into the structure of the steel wire, in tension requirements of steel beam exposed length than the working length of jack up 200 - 250mm. steel wire must not lose its head with a sheet grinder after cutting, and is not a "feather", to avoid perforation difficult.
(2) cover the end of the steel wire of the work anchor plate, push it to the anchor plate and fix it at the end of the anchor
(3) installation: Install of anchor clamp clip before the steel ring pay per clip hoop together, and then along the strand will be pushed into the anchor hole, pushed by hand to move.
(4) installing the limiting plate: the spacing plate matches the hole of the anchor plate according to the design of the work anchor plate
(5) post-tensioning jacks: first strand bundle end with wire pin and binding can be lifted, Jack is sheathed on the steel beam, Prestressed Post
