| Model | WL-500 |

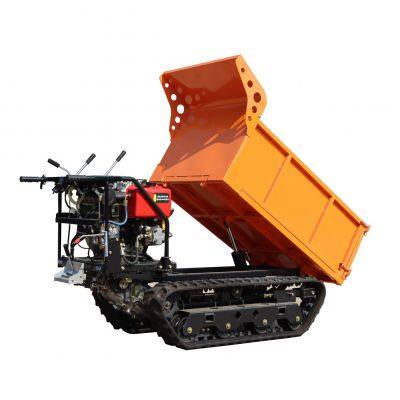

| Name | Crawler type dumper |
| Overall size | 2160*900*1250 mm |
| Net weight | 430 KG |
| Engine model | Changfa diesel engine |
| Engine power | 6.8KW /( 10 HP) |
| Container size | 1500x980x400-700 mm |
| Loading weight | 500 KG |
| Gear box | 3+1*2 |
| Dump type | hydraulic |
| Start type | Electric |
| Pedrail length | 800 mm |
| Pedrail width | 180 mm |
| Work speed | F1.8-6.1/B1.8-3.6 km/h |
| Ground distance | 140 mm |
