US$10,000.00-200,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Material Processed
Palm,Cardboard Paper,Plastic
Plastic Type
Pet Bottles, HDPE Bottles and Others
Automation
Semi Automatic
Computerized
Computerized
Open Door
Double Door Interlock
Pressure
Digital Pressure Gauge
System
Integrated Hydraulic System
Machine Weight
500-4300kgs
Function
Pressing,Packing,Recycling
Factory History
Since 1936
Transport Package
Wooden Box
Production Capacity
20 Sets Per Month
Product Description
Product Description

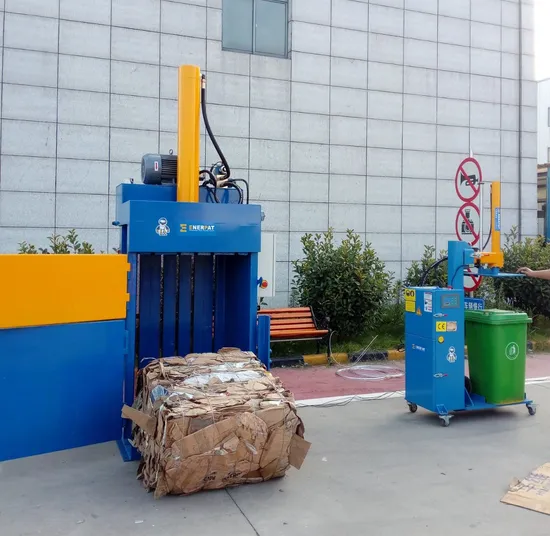

Vertical solid waste baler
Combining lightweight household waste, cardboard boxes, waste paper,
straw, crushed documents, palm, PET bottles, HDPE bottles, plastic films,
woven bags, etc
Applications
Technical Data Sheet
| Model | Power(t) | Motor power(kw) | Size of feeding(mm) | Package size(mm) | Package weight(kgs) | Machine size(mm) | Machine weight(kgs) |
| VB-10S | 10 | 2.2 | W600×H360 | 600×400×(400-640) | 35-60 | 950×760×2070 | 500 |
| VB-20S | 20 | 4.0 | W800×H450 | 800×600×(300-800) | 50-110 | 1155×850×2850 | 850 |
| VB-30S | 30 | 5.5 | W800×H450 | 850×600×(300-8000) | 80-160 | 1200×1000×2900 | 1150 |
| VB-40S | 40 | 7.5 | W1100×H550 | 1100×700×(500-1000) | 200-260 | 1580×1000×3140 | 1500 |
| VB-50S | 50 | 7.5 | W1100×H550 | 1100×750×(500-1000) | 250-350 | 1580×1080×3140 | 1900 |
| VB-63S | 63 | 11 | W1200×H550 | 1200×800×(500-1000) | 300-450 | 1680×1160×3280 | 2100 |
| VB-40D | 40 | 7.5 | W1100×H550 | 1100×700×(500-1000) | 200-260 | 1580×1000×3140 | 1500 |
| VB-50D | 50 | 7.5 | W1100×H550 | 1100×700×(500-1000) | 250-350 | 1580×1080×3200 | 1900 |
| VB-60D | 60 | 11 | W1200×H550 | 1200×800×(500-1000) | 300-450 | 1660×1180×3220 | 2200 |
| VB-80D | 80 | 15 | W1200×H550 | 1200×800×(500-1000) | 400-600 | 1660×1180×3220 | 2600 |
| VB-100D | 100 | 18.5 | W1200×H550 | 1200×800×(500-1000) | 500-650 | 1700×1310×3280 | 3600 |
| VB-120D | 120 | 22 | W1200×H550 | 1200×800×(500-1000) | 600-700 | 1700×1310×3280 | 4300 |
Machinery Photos
