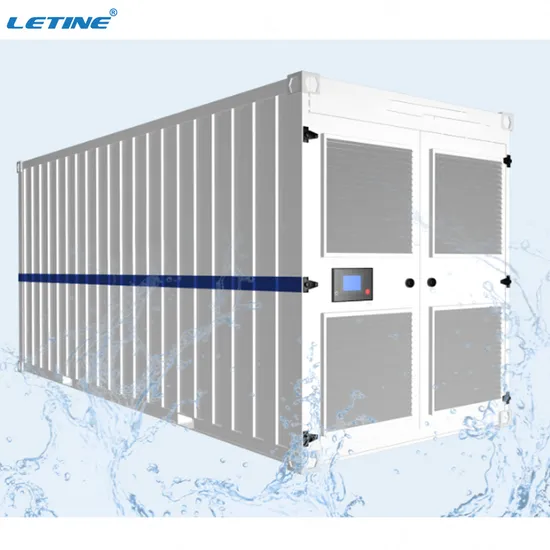

Water Cooling Mining Container 1.6MW Water-Cooled Cabinet for Whatsminer M20 M30 M50 Antminer S19 Series

Product Description

Water Cooling Mining Container 1.6MW Water-cooled Cabinet for Whatsminer M20 M30 M50 Antminer S19 series
heat dissipation capacity: 1600KW, reserve 10% margin
Dimensions (L*W*H), mm: 6058*2438*2896
Ambient temperature and humidity: 35ºC,60%RH
Wet bulb temperature: 28ºC
Cooling tower inlet and outlet water temperature : 35ºCCooling tower inlet 45°C, cooling tower outlet 35°C
flow: 180m³/h
Fan air volume: 75000m³/h*4
Fan power: 7.5KW*4
Spray pump flow: 233m³/h
Spray pump power: 5.5KW
Motor voltage: 380V/50Hz
water consumption :Maximum 1~1.5m³/h
Sprinkler pipe material:304 Stainless steel
304 stainless steel tube + aluminum fins
Weight (shipping weight/running weight): 6/10 ton
noise(16m): maximum 75dBA
External piping specifications : DN150,DN40,DN65 Circulating water pipe DN150, make-up water pipe DN40, drain pipe DN65
design pressure: 1.2Mpa
flow resistance loss: 80KPa
total power: 25KW(max35KW)
Details for Water Cooling Mining Container 1.6MW Water-cooled Cabinet for Whatsminer M20 M30 M50 Antminer S19 series

Product type	Water Cooling Mining Container
heat dissipation capacity	1600KW
Motor voltage	380V/50Hz
water consumption	Maximum 1~1.5m³/h
Sprinkler pipe material	304 Stainless steel
Ambient temperature and humidity	35ºC,60%RH
design pressure	1.2Mpa
noise(16m)	maximum 75dBA
total power	25KW(max35KW)
